GM-L · MULTISOURCE LED
GML WASH 3715
Zoom 10–60° (smooth zoom)37 × 15W RGBW 4-in-1 LED
GML WASH 3715
Product Overview
Concept and Optical Capabilities

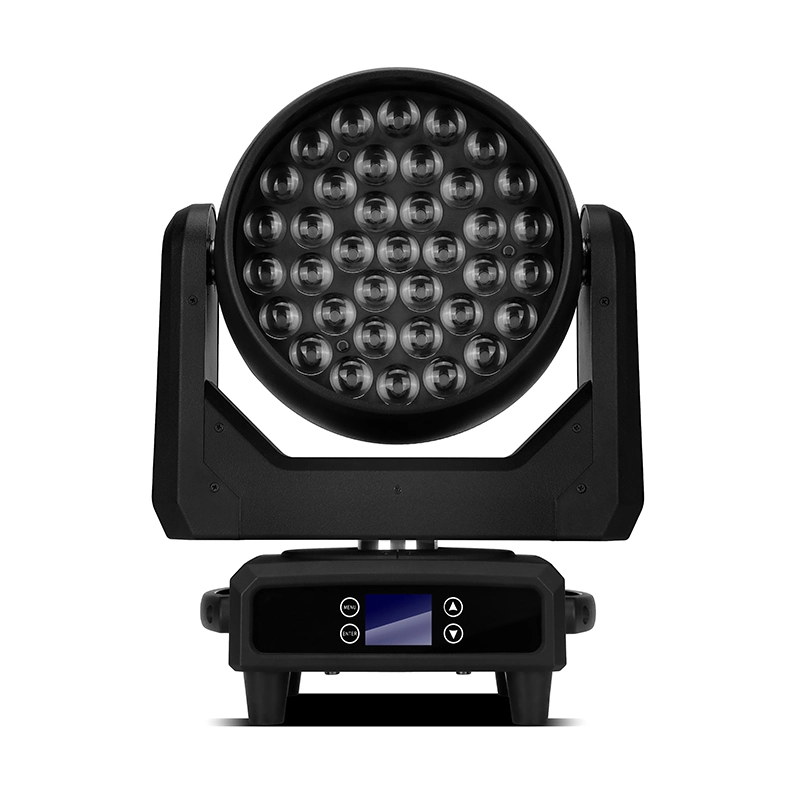

The GML WASH 3715 is a versatile moving head wash luminaire engineered for touring productions, broadcast studios, and auditorium stages. Its optical engine integrates 37 × 15W RGBW 4-in-1 LEDs delivering an intense and uniform color wash across the performance area.
Key Functional Features
- Optical Assembly and Motorized Zoom: A quiet linear motorized zoom from 10° to 60° allows seamless transitions from concentrated key beams to expansive stage coverage.

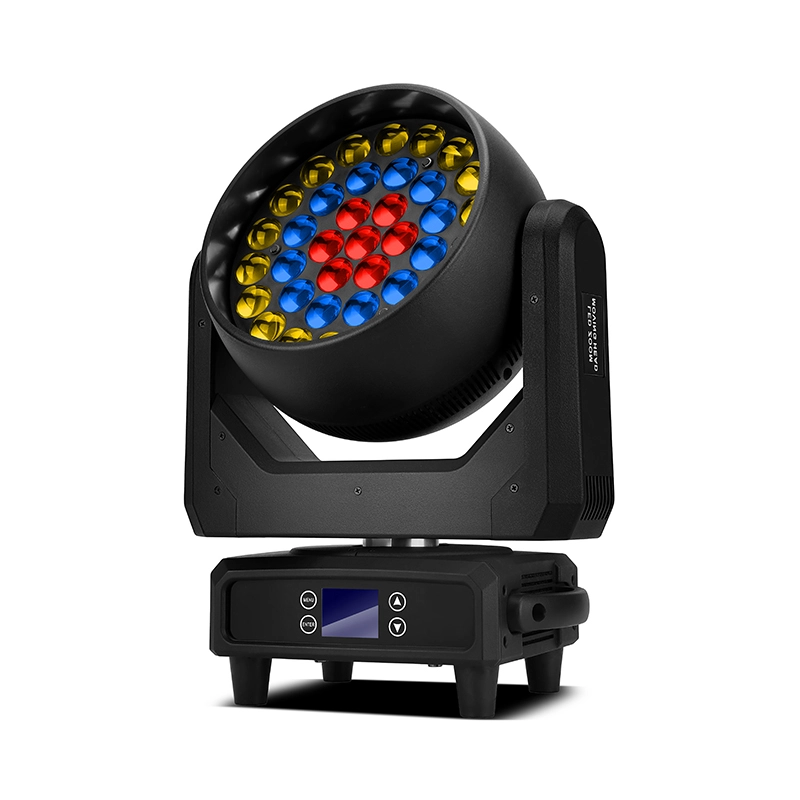

- Ring Zone Control and Fixed Shapes: Concentric LED ring segmentation and built-in geometric macros facilitate layered multi-zone dynamic visual effects.
- DMX Mapping and Protocol Compatibility: Comprehensive DMX512 and RDM support with ROBIN 600 channel compatibility profiles (37/21/15/10/11/25 channels) for streamlined showfile integration.

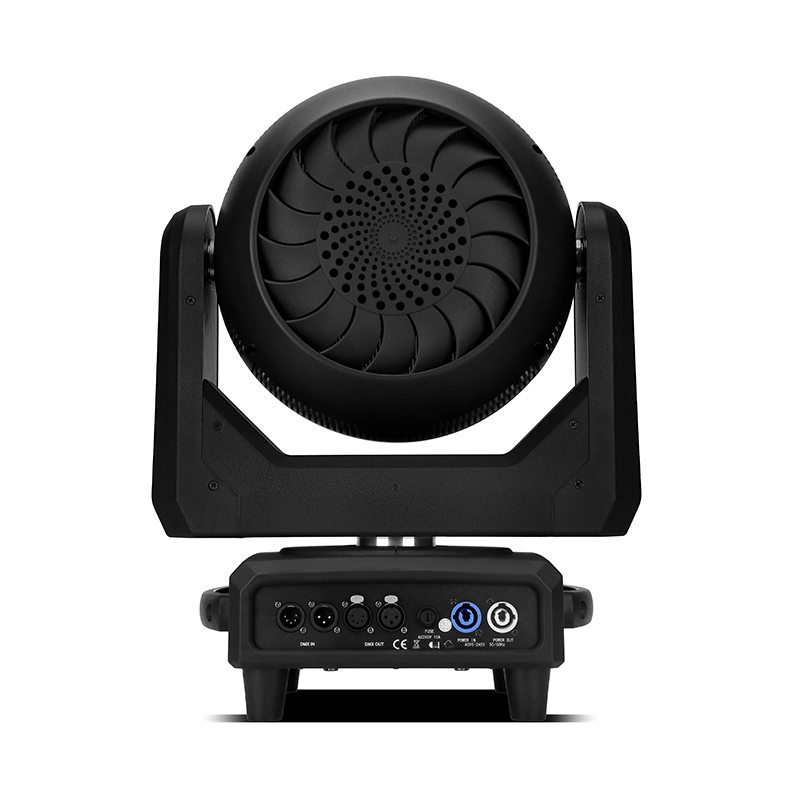

- Mechanics and Connectivity: 16-bit Pan (540°) and Tilt (270°) drive system, 0–100% electronic dimming, LCD interface, PowerCON in/out, and 3-pin/5-pin XLR connectors.
Application Scope

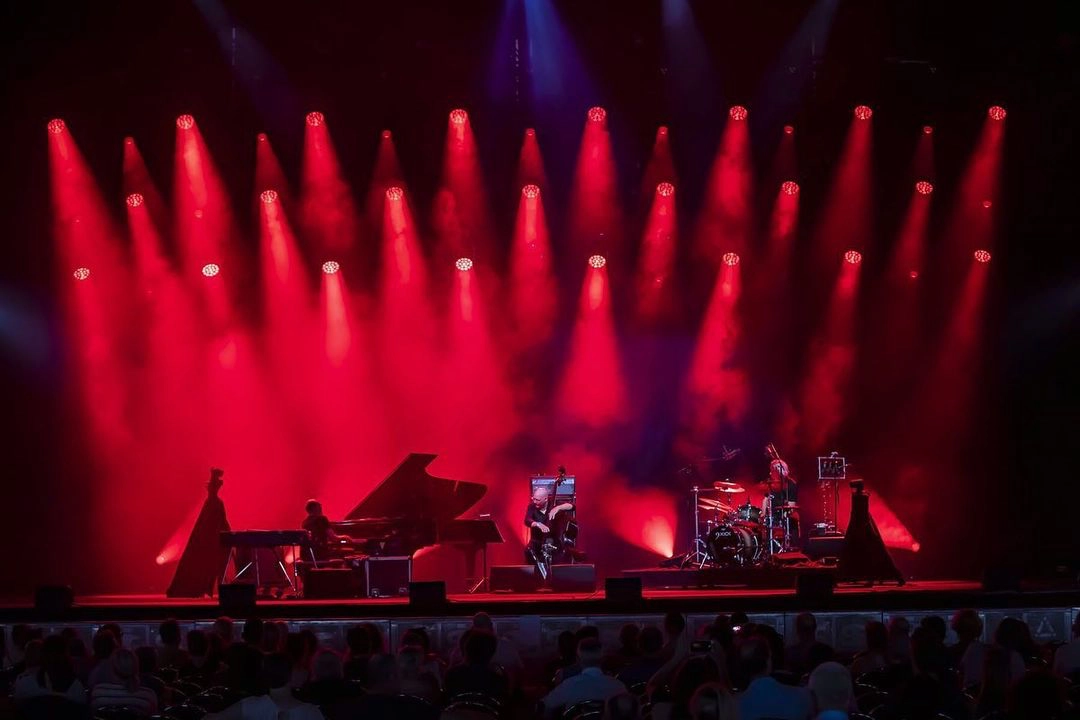

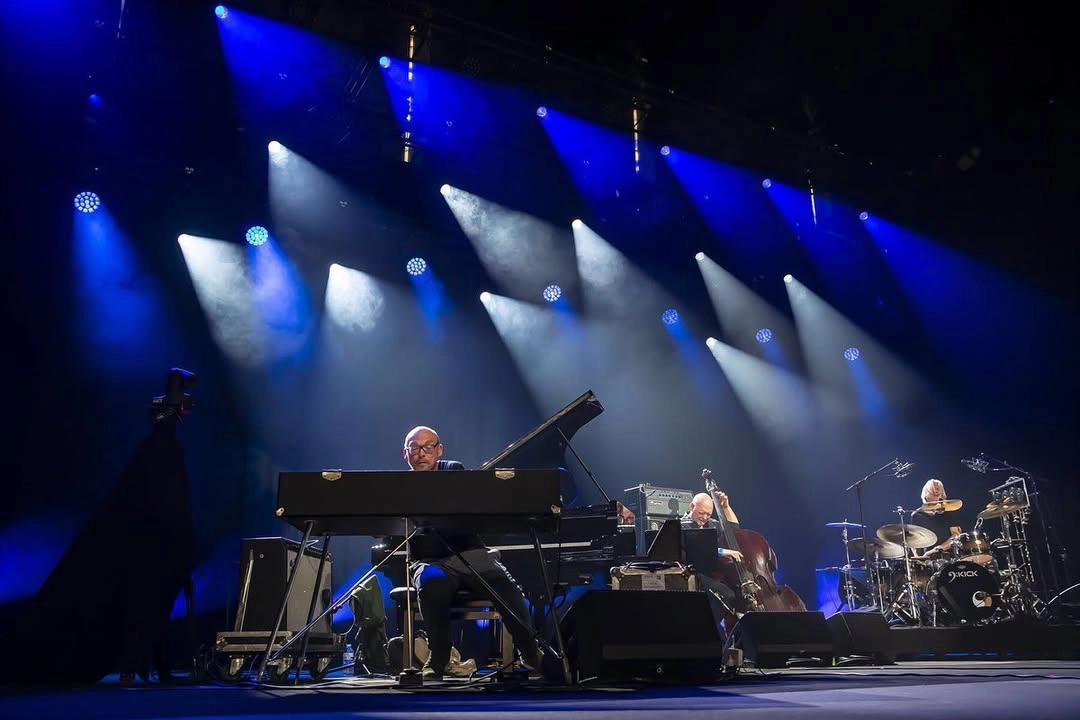

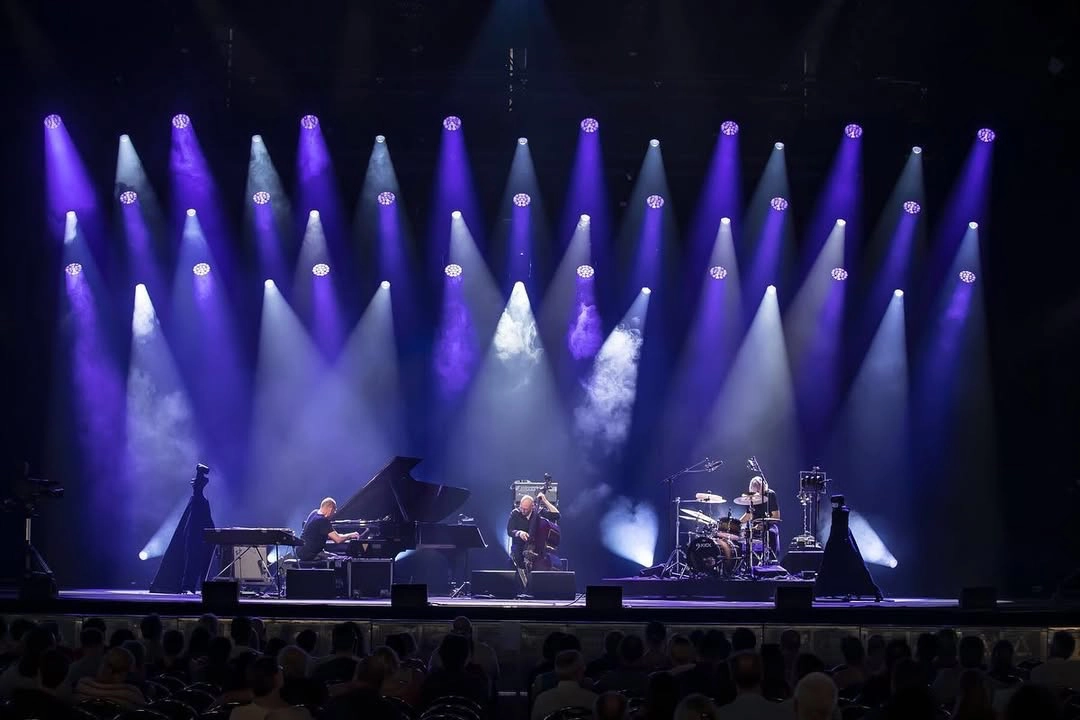

Industry-standard protocol mapping and reliable thermal management make the luminaire an adaptable asset for rental inventories, event spaces, and permanent installations.
03 // TECHNICAL SPECIFICATIONS
Specifications

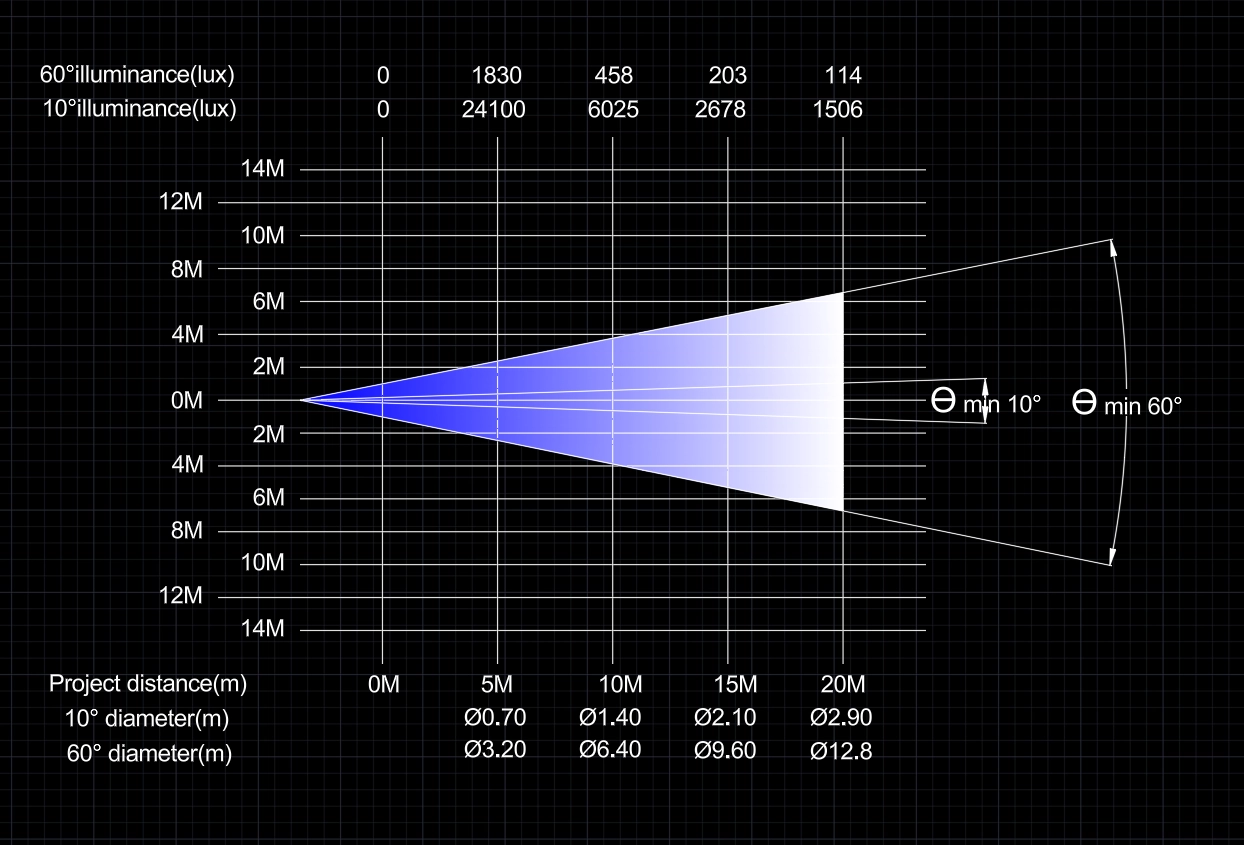

Zoom range
10–60° (smooth linear zoom)
Strobe
Variable strobe speeds
Tilt movement
270° (16-bit)
Light source
37 × 15W RGBW 4-in-1 LED
Color mixing
RGBW linear color mixing
Zone control
Multi-zone ring control
Control protocols
DMX512, RDM, Master/Slave (optional wireless DMX)
DMX channels
37/21/15/10/11/25 channels (ROBIN 600 compatibility)
Control connectors
3-pin & 5-pin XLR IN / OUT
Input voltage
AC 100–240V, 50/60 Hz
Power consumption
500 W
Power connectors
PowerCON IN / OUT
Fixture dimensions
430 × 246 × 512 mm
Net weight
19.5 kg
Fixture type
LED Moving Head Wash Luminaire
Dynamic effects
Built-in fixed shapes, color macros
Dimmer
Electronic 0–100%
Pan movement
540° (16-bit)
Software update
Firmware update via DMX link
Display
LCD display
IP rating
IP20
