GM-L · MULTISOURCE LED
GML WASH 1940
Zoom 10–60°19 × 25W RGBW 4-in-1 High CRI
GML WASH 1940
Product Overview
Concept and Optical Capabilities

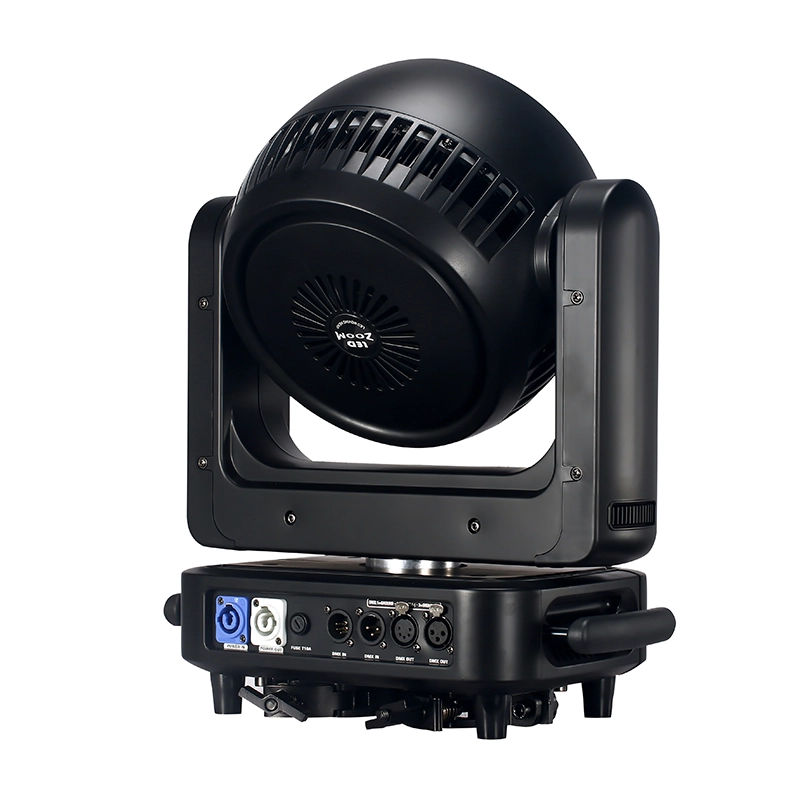

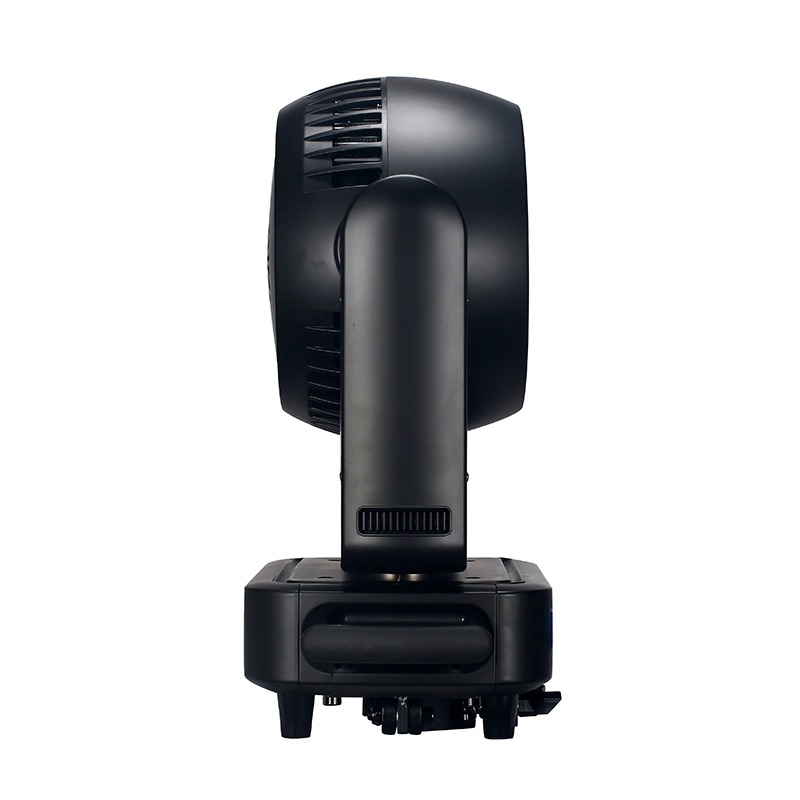

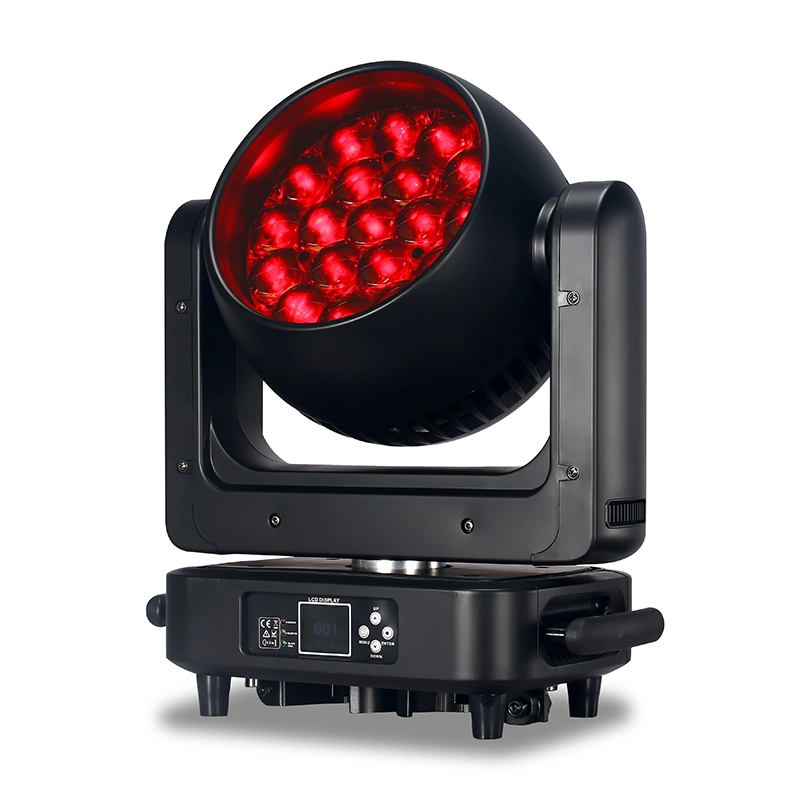

The GML WASH 1940 High CRI is a compact moving head wash fixture engineered for broadcast studios, theatres, and concert stages with stringent color rendering demands (CRI>95). It features 19 × 25W RGBW 4-in-1 emitters drawing 530 W total power.
Key Functional Features
- Authentic Color Rendition and CCT: An exceptional CRI>95 rating guarantees natural subject tones, while an expansive 2200–10000 K white spectrum allows precise alignment with camera white balance.
- Optical Assembly and Ring Manipulation: A 10–60° motorized zoom adjusts coverage from tight beams to uniform field washes, complemented by concentric LED ring zone control.
- Dynamic Functions and Dimming: Smooth 0–100% electronic dimming, 1–25 Hz variable-speed strobe with pulse and random flash patterns, and integrated color macros.
- Control and Ergonomics: DMX512 and RDM compatibility (14/27 channels), 180° reversible LCD interface, PowerCON in/out, and 3/5-pin XLR terminals.
Application Scope
A lightweight 9.5 kg chassis and streamlined footprint make the luminaire ideal for touring rental inventories, corporate stages, and permanent studio installations.
Product variants
2 variants available
Active:Standard
Standard:High-power LED wash fixture with 19x40W Osram RGBW LEDs and 4°–45° motorized zoom.
03 // TECHNICAL SPECIFICATIONS
Specifications
Zoom range
10–60°
Strobe
1–25 Hz, random and pulse flash
Tilt movement
270°
Light source
19 × 25W RGBW 4-in-1 High CRI LED
Color rendering index (CRI)
>95
Light source lifetime
50,000 h
Color temperature
2200–10000 K
Color mixing
RGBW linear color mixing adjustment
Color macro mode
Outstanding color macro mode
Zone control
Concentric ring control (Rings control)
Control protocols
DMX512, RDM
DMX channels
14/27 channels

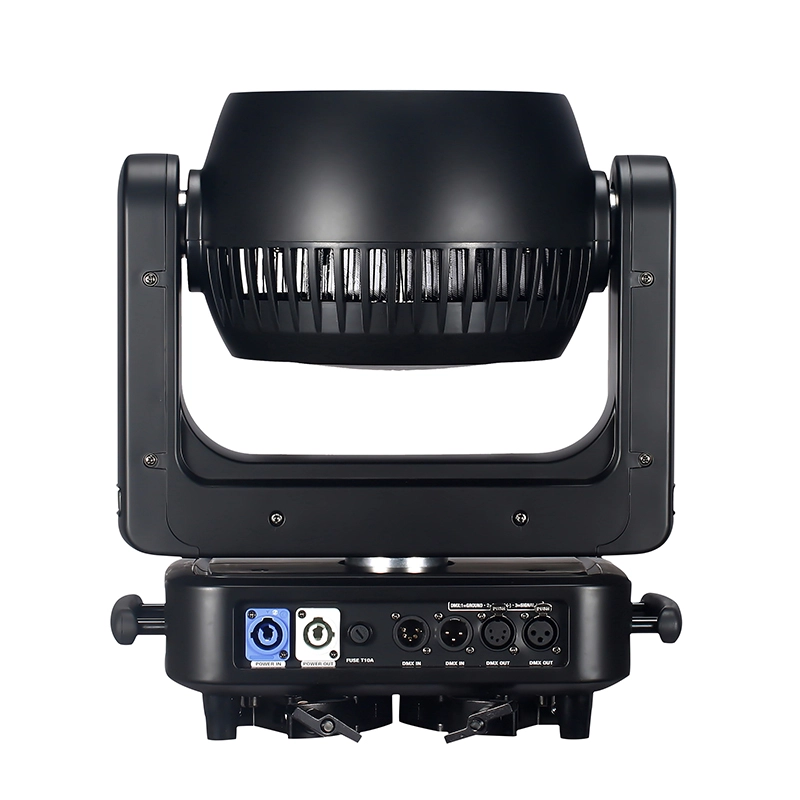

Control connectors
3-pin & 5-pin XLR IN / OUT
Input voltage
AC 90–240V, 50/60 Hz
Power consumption
530 W (@ 220 V)
Power connectors
PowerCON IN / OUT
Fixture dimensions
350 × 200 × 400 mm
Net weight
9.5 kg
Fixture type
LED Moving Head Wash Luminaire
Dimmer
Electronic 0–100%
Pan movement
540°
Display
LCD display with display flip
IP rating
IP20
