GML THUNDER M IP
Product Overview
Concept and Optical Capabilities

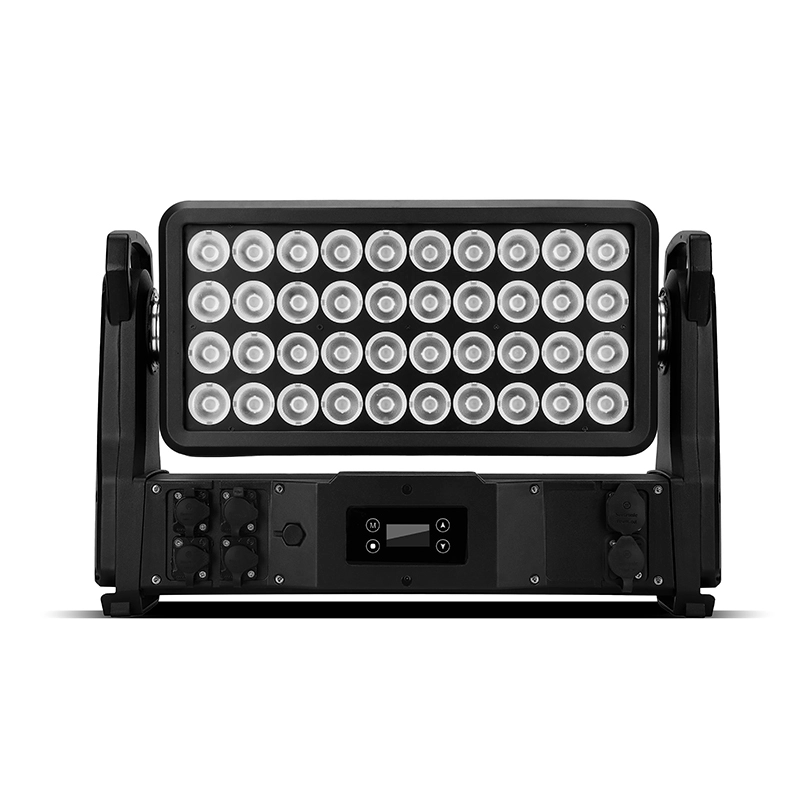

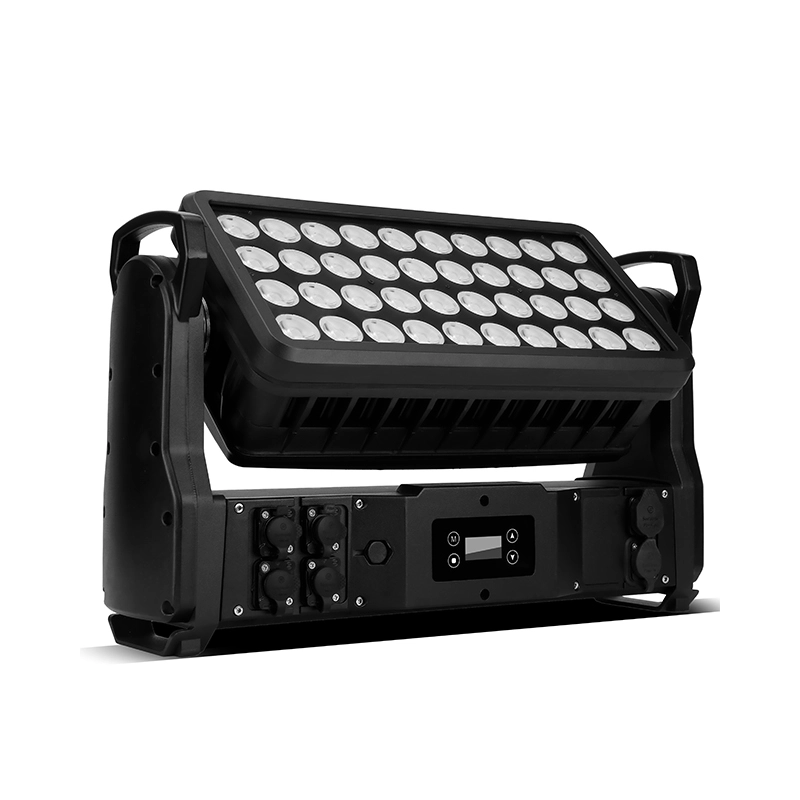

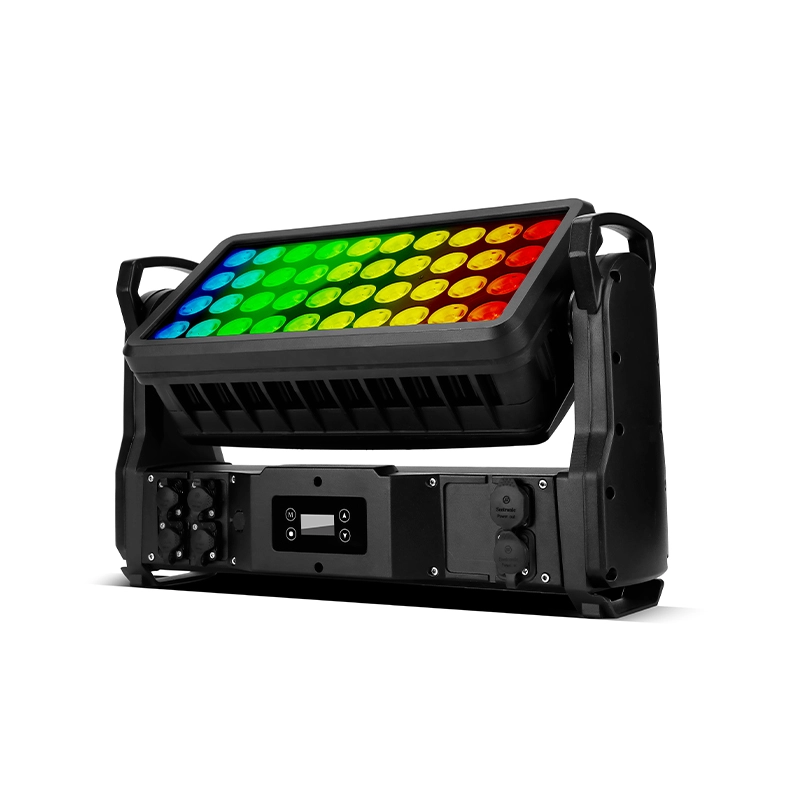

The GML THUNDER M IP is an ultra-high-output IP65 all-weather motorized tilt wash, strobe, and blinder luminaire designed for outdoor festivals, stadium tours, and architectural illumination. It is powered by 40 × 40W RGBW 4-in-1 emitters delivering 1200 W total power.
Key Functional Features
- Zonal Segmentation and Motorized Tilt: A 10-segment (2×5) matrix delivers multi-layer graphic mapping, while a motorized 185° Tilt mechanism with position feedback provides sweeping aerial motion.
- Optical Control and Electronic Diffusion: Onboard electronic diffusion seamlessly softens beam edges, switching the unit from punchy direct flash to homogeneous wash distribution.
- Dynamic Intensity and Strobe: Continuous 0–100% linear dimming, 1–25 Hz strobe offering pulse and random flash macros, alongside automated multi-LED graphic presets.
- Environmental Protection and Interfacing: Rugged IP65 die-cast aluminum housing, sealed Seetronic powerCON TRUE1 and 3/5-pin XLR connectors, USITT DMX512 and RDM support (optional Art-Net and W-DMX), and an operating temperature range of -30°C to +50°C.
Application Scope
At 12.2 kg with integrated Omega brackets and rubber feet, this fixture serves as an audience blinder, high-impact strobe, and floodlight for premier arena and outdoor events.
Product variants
2 variants available
Active:40x40W
40x40W:Maximum output configuration with 40x40W RGBW LEDs and 185° motorized Tilt movement.
03 // TECHNICAL SPECIFICATIONS
Specifications
Strobe
1–25 Hz, random and pulse flash
Tilt angle
185° (8–16 bit resolution)
Light source
40 × 40W RGBW 4-in-1 LED
LED segments
10 independent segments (2 × 5)
Control protocols
USITT DMX-512, RDM (optional Art-Net, 2.4 GHz W-DMX)
DMX channels
5/12/43/49 channels
Control connectors
Seetronic IP65 XLR 3-pin or 5-pin IN / OUT
Input voltage
AC 100–240V, 50/60 Hz
Power consumption
1200 W
Power connectors
Seetronic powerCON TRUE1 IN / OUT
Fixture dimensions
502 × 137 × 326 mm
Net weight
12.2 kg
Fixture type
All-weather LED Tilt Wash / Strobe / Blinder Luminaire
Optical diffusion
Electronic diffusion system
Dynamic effects
Multi LED Macro Effects
Dimmer
0–100% linear adjustment
Position feedback
Yes
Display
Illuminated graphic OLED display
IP rating
IP65 all-weather
Housing material
Die-cast aluminum
Operating temperature
-30°C to +50°C
Cooling system
Temperature-controlled with overheating protection
