GML STRIKE M IP All-Weather Motorized LED Strobe

GML STRIKE M IP All-Weather Motorized LED Strobe

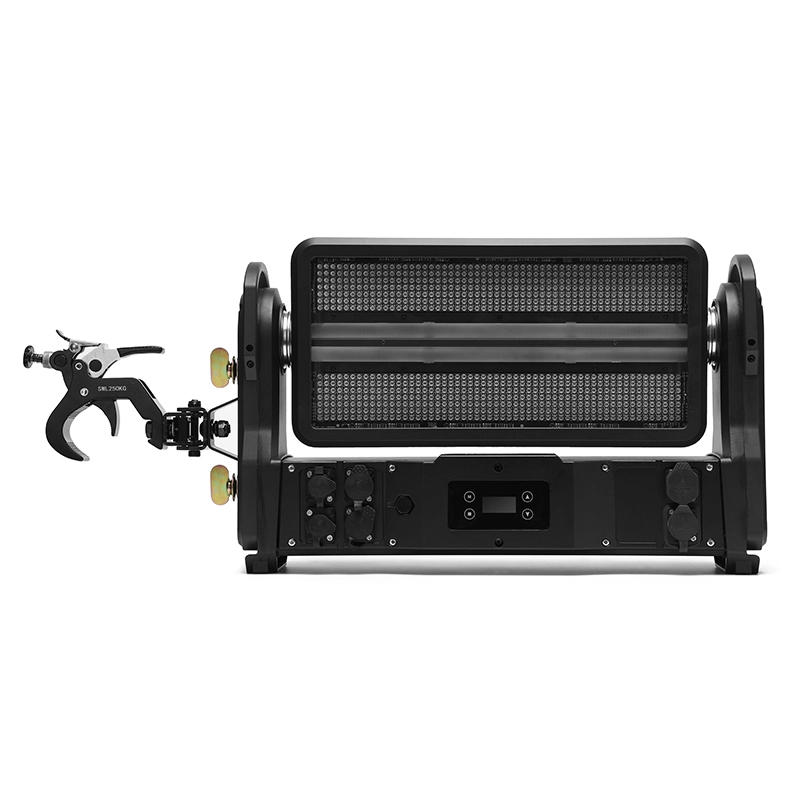

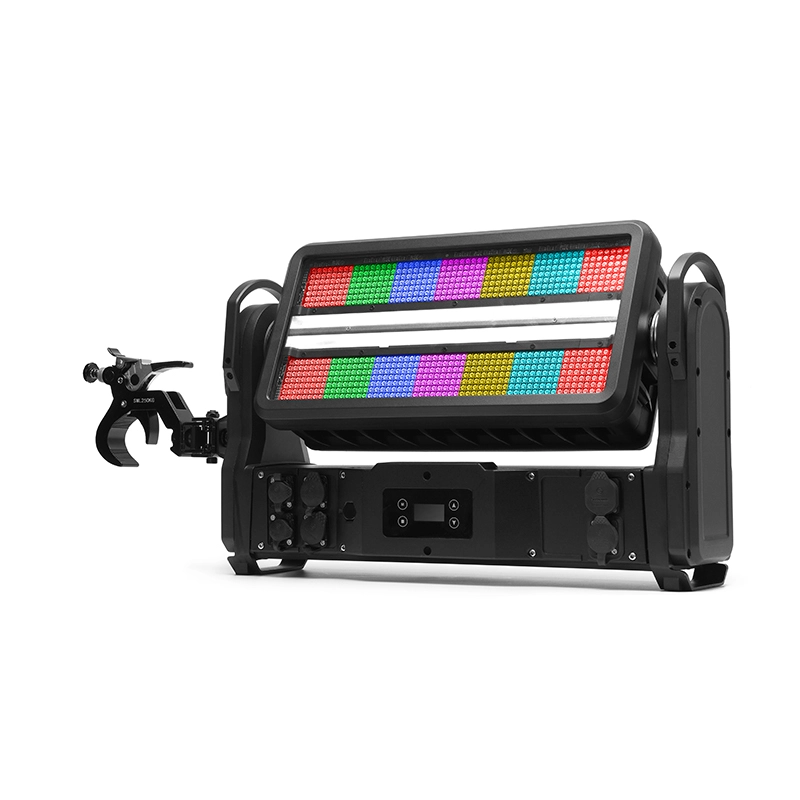

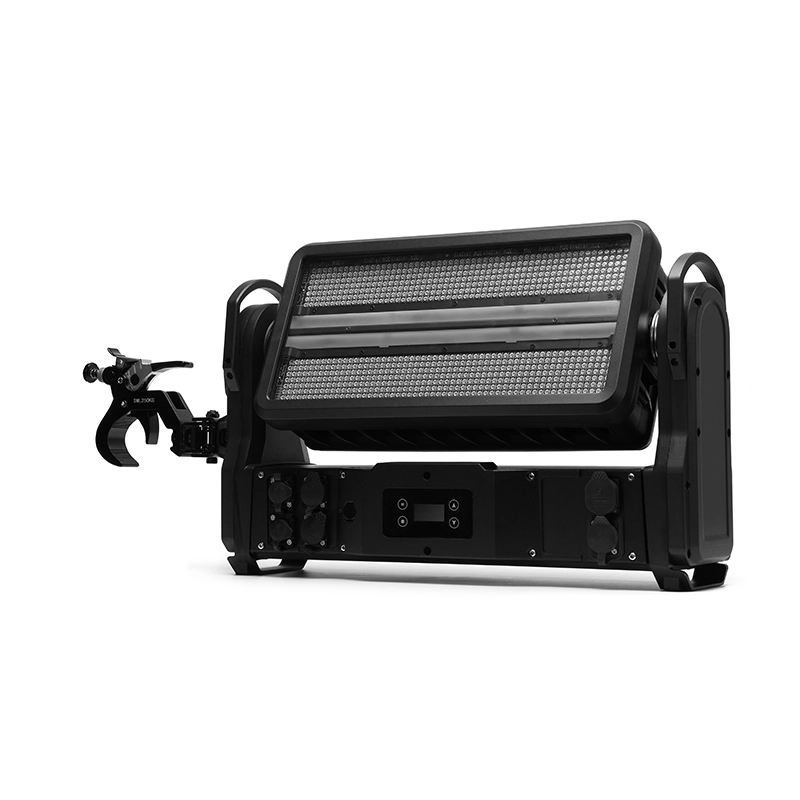

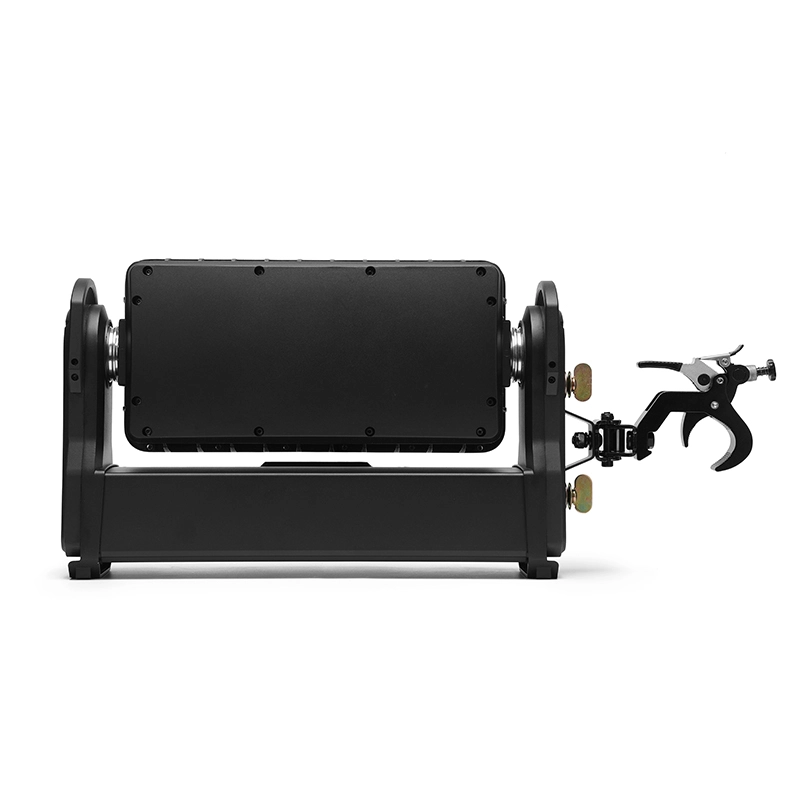

GML STRIKE M IP is built for high-impact festival stages and stadium productions under demanding outdoor environments (IP65). The optical system pairs a background wash/strobe face of 784 × 0.5W RGB 5050 LEDs (14 control segments, 2 × 7) with a central strobe tube of 392 × 5W 3535 6500K Cool White LEDs (28 control segments, 2 × 14).

Tilt Kinematics and Dynamic Effects

The unit features 185° motorized Tilt movement with 8–16 bit resolution and active position feedback. Dynamic features include 1–25 Hz strobe rates with random and pulse flash modes, 0–100% electronic dimming, and internal LED macro libraries.

Control Compatibility and Field Hardware

Fully compatible with CH Color Strike M channel architectures across 5, 8, 11, 13, 14, 24, 74, and 97 channels. Integrated protocols cover USITT DMX-512, RDM, and Art-Net with an OLED graphic display. The rugged die-cast aluminum housing incorporates Seetronic IP65 XLR (5-pin or 3-pin) and Seetronic powerCON TRUE1 connectors.
