GML P2 HEXALINE Stage Linear Retro LED Batten

Concept and Optical Performance

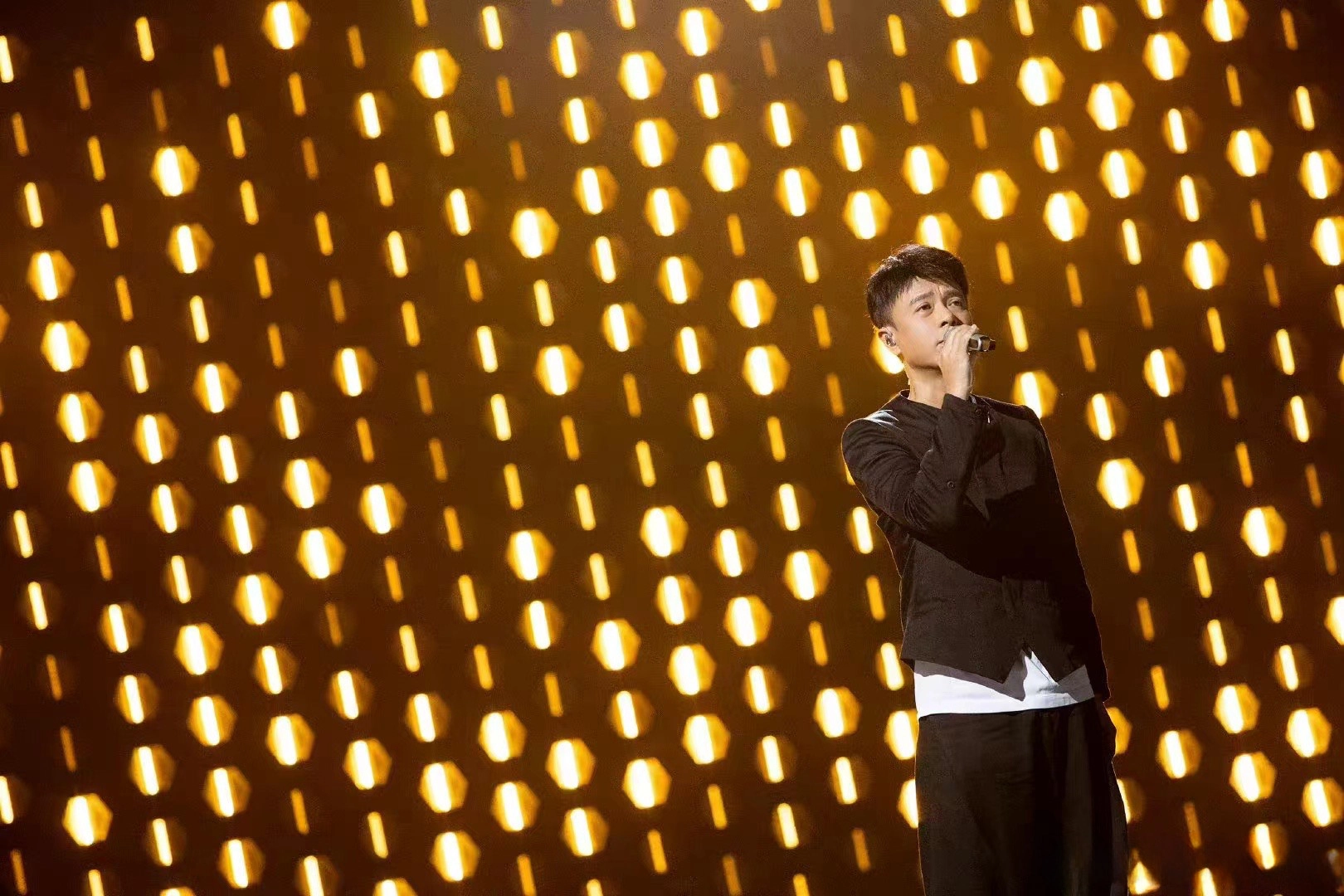

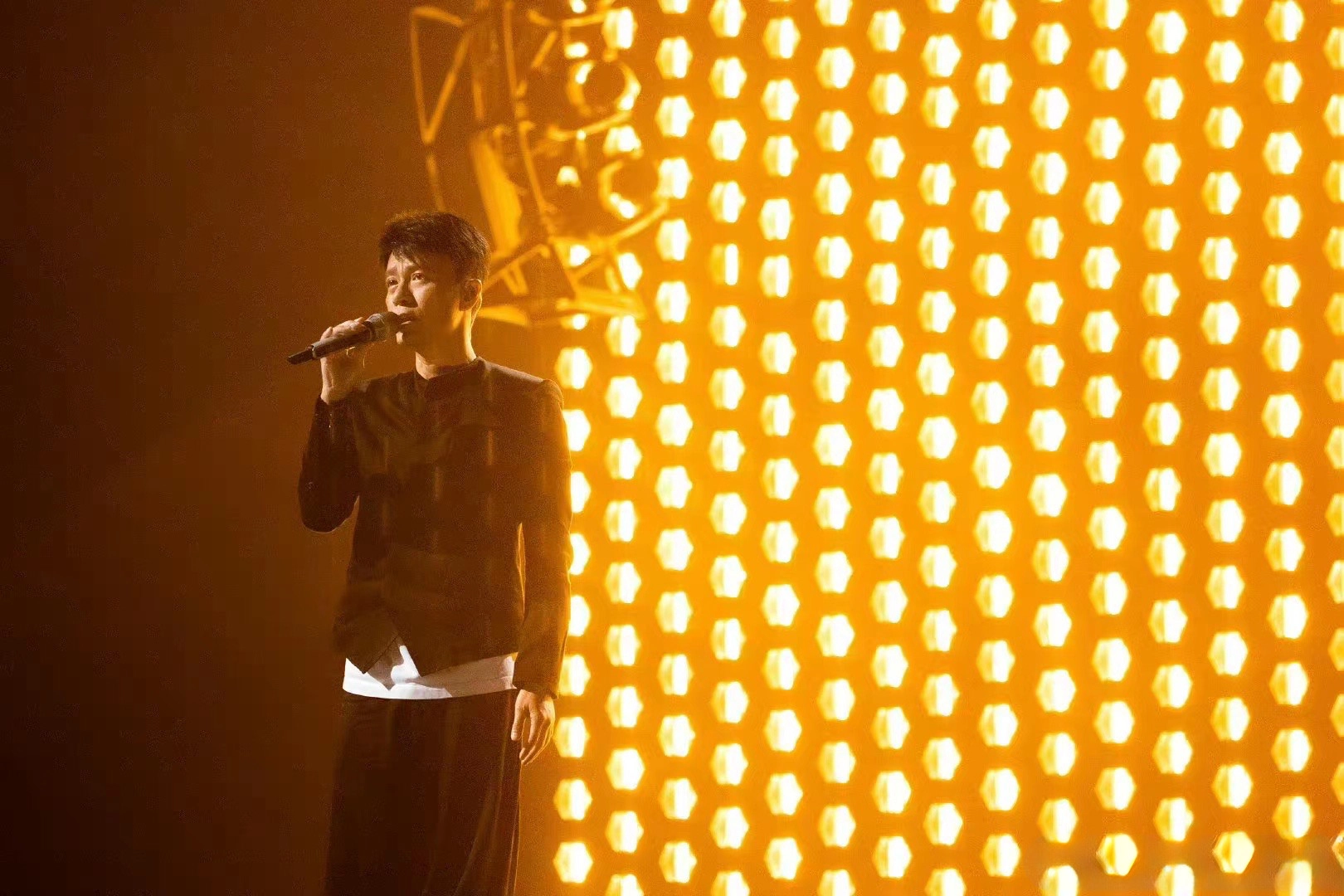

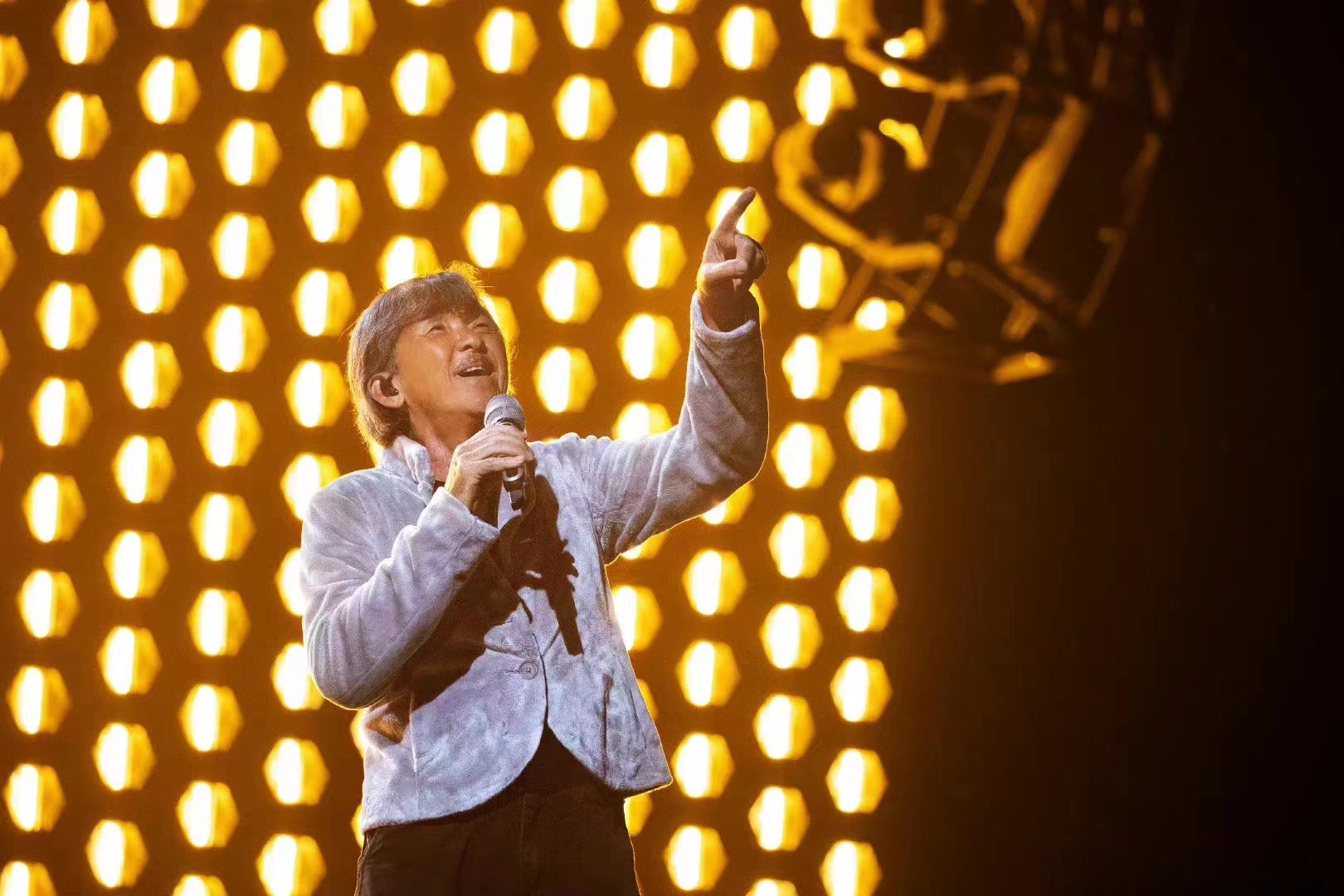

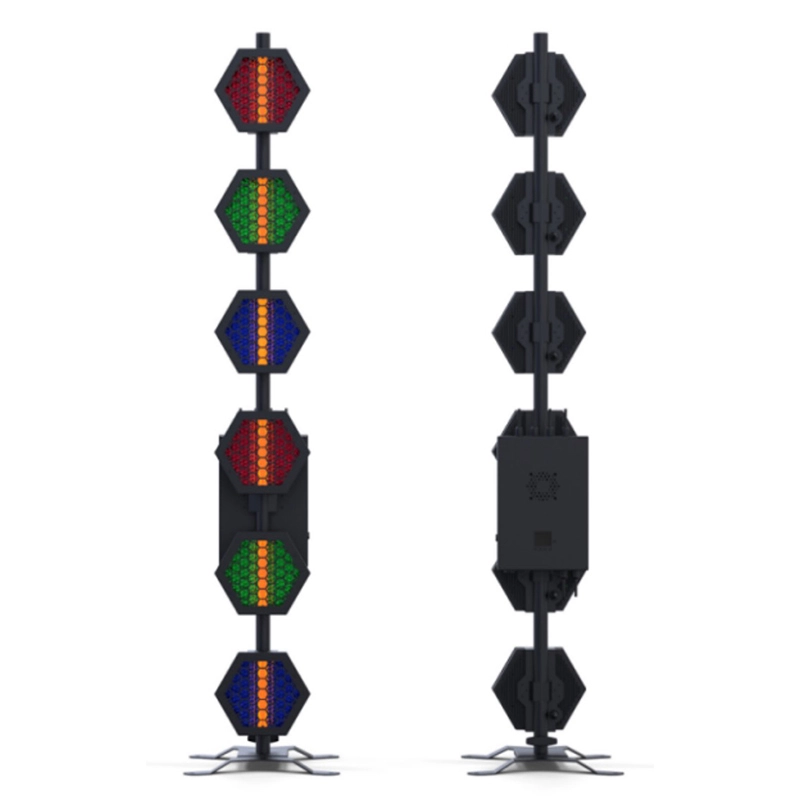

The GML P2 HEXALINE is a linear retro LED batten featuring hexagonal vintage cells designed for touring stages, broadcast backdrops, and footlight positions. The primary lighting array consists of 6 individual 60W LED engines emitting warm 2200K tungsten-like illumination. To enhance spatial depth, each cell is encircled by an ambient background array delivering a combined total of 144 × SMD5050 RGB LEDs.

Rigging and Form Factor

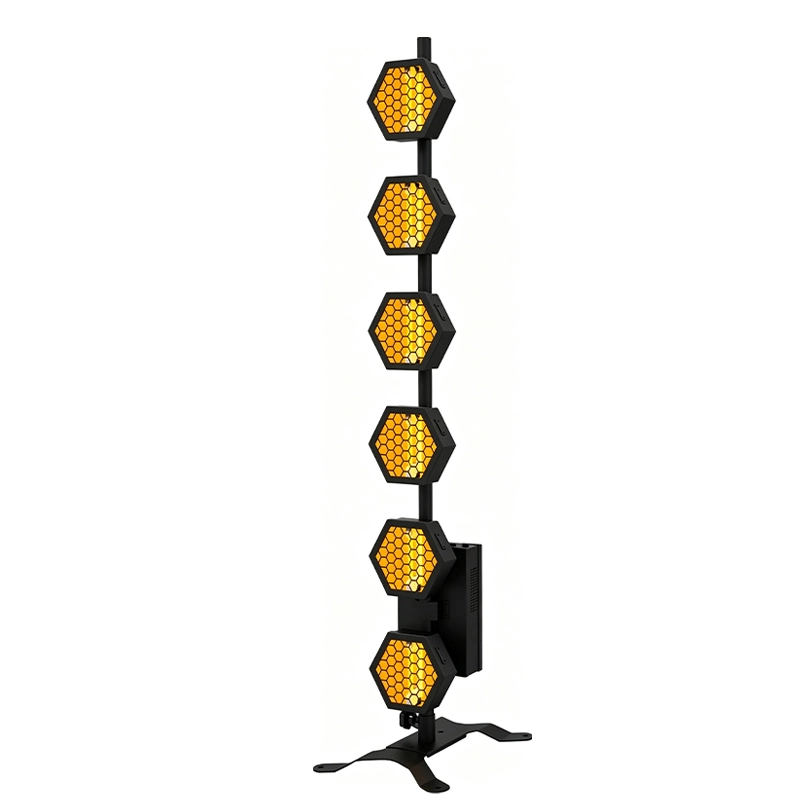

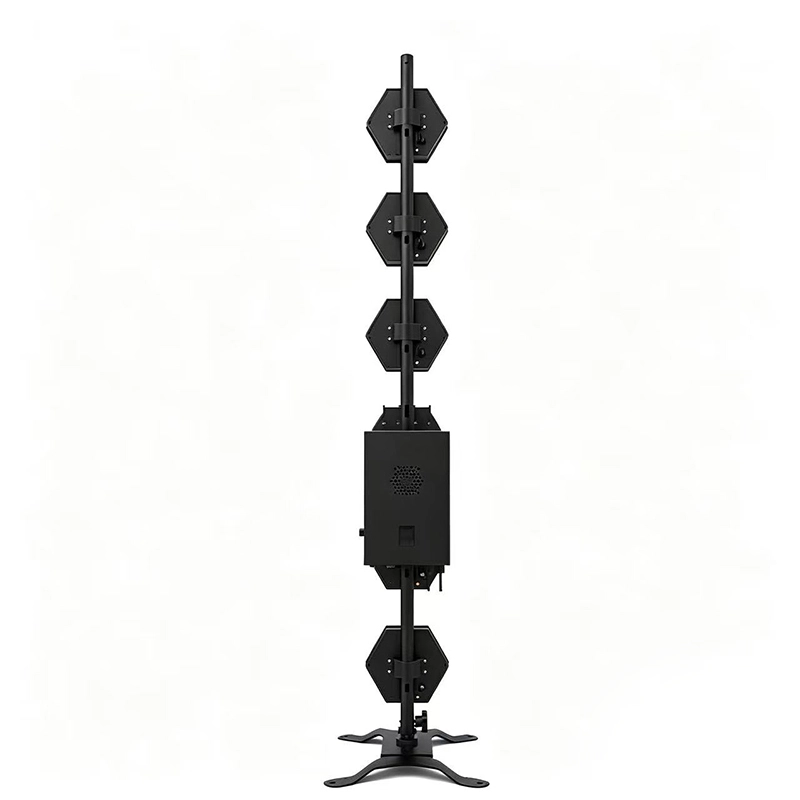

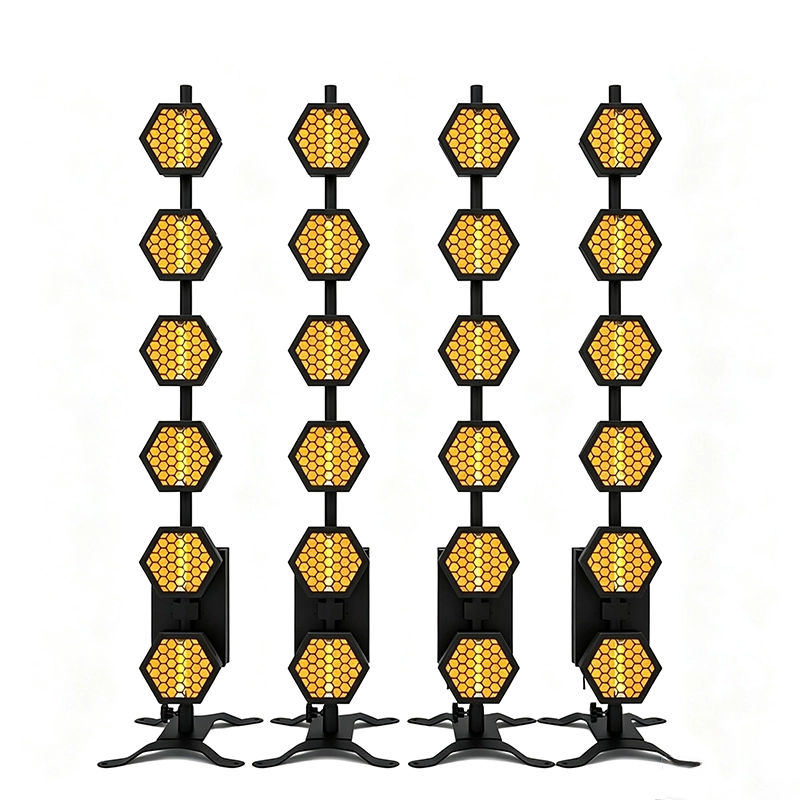

Configured with multi-point rigging hardware, the fixture accommodates floor standing base setups, tripod installations, and truss mounting for horizontal or vertical line arrays. Mechanical dimensions are 153 × 320 × 410 mm with a gross weight of 8.5 kg.

Control and Connectivity

Digital control is routed over USITT DMX512 across 8-channel and 28-channel modes, offering granular pixel programming over warm white emitters and RGB ambient rings. Integrated automated macros and Master-Slave synchronization operate alongside 3-pin XLR data connectors. Rated power consumption is 450W.
