GM-L · MULTISOURCE LED
GML MRGO FX IP
Zoom 6–55°19 × 50W RGBL 4-in-1 LEDIP65
IP65
GML MRGO FX IP
Product Overview
Concept and Optical Capabilities

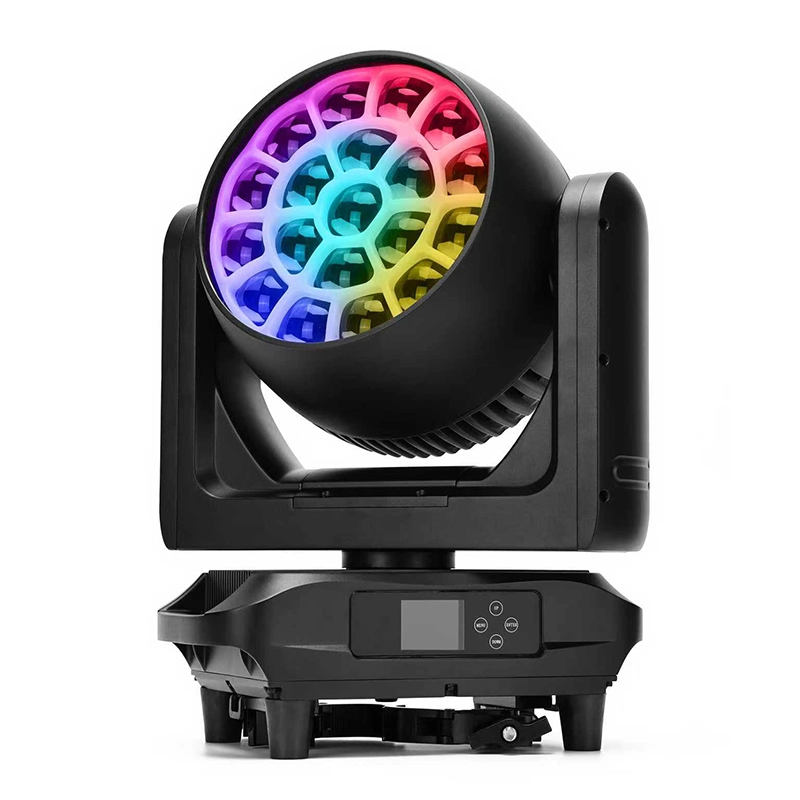

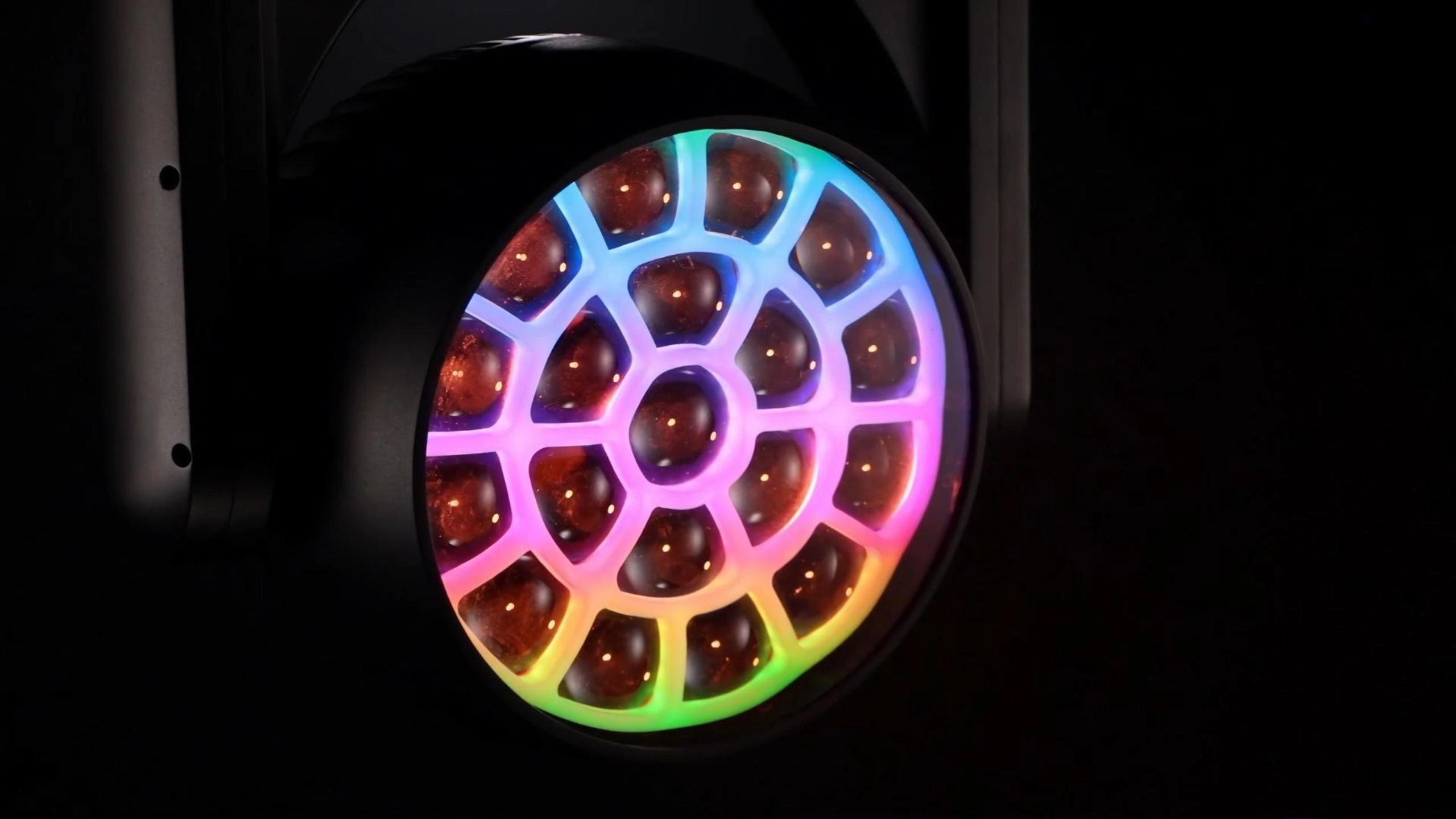

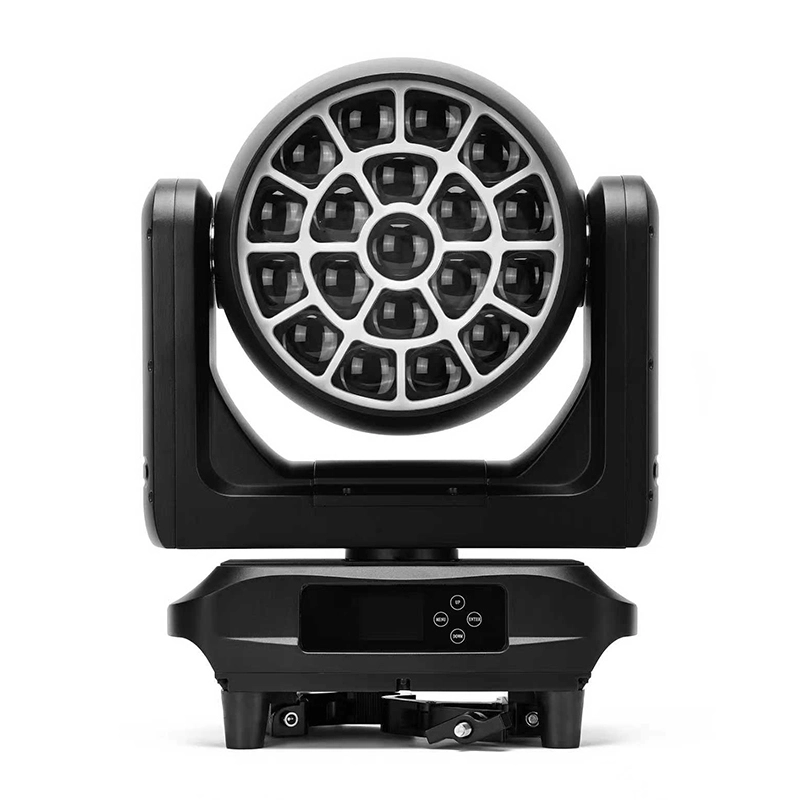

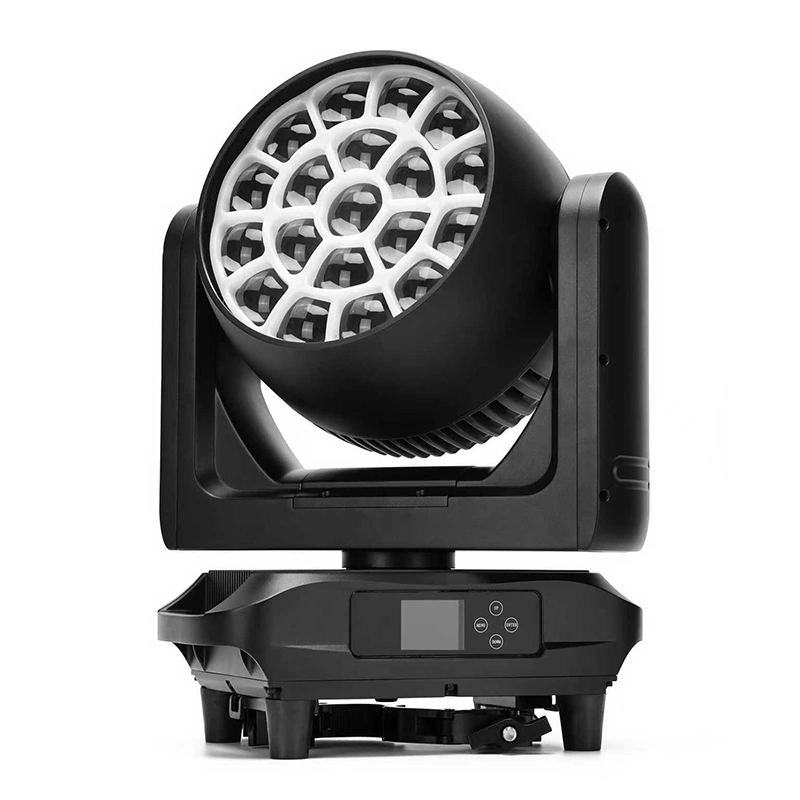

The GML MRGO FX IP is an IP66 all-weather LED moving head engineered for stadium tours, outdoor festivals, and large-scale stage productions. The luminaire pairs a primary engine of 19 × 50W RGBL 4-in-1 LEDs with an independent backlight matrix of 210 RGB LEDs to produce layered visual dimensions.
Key Functional Features

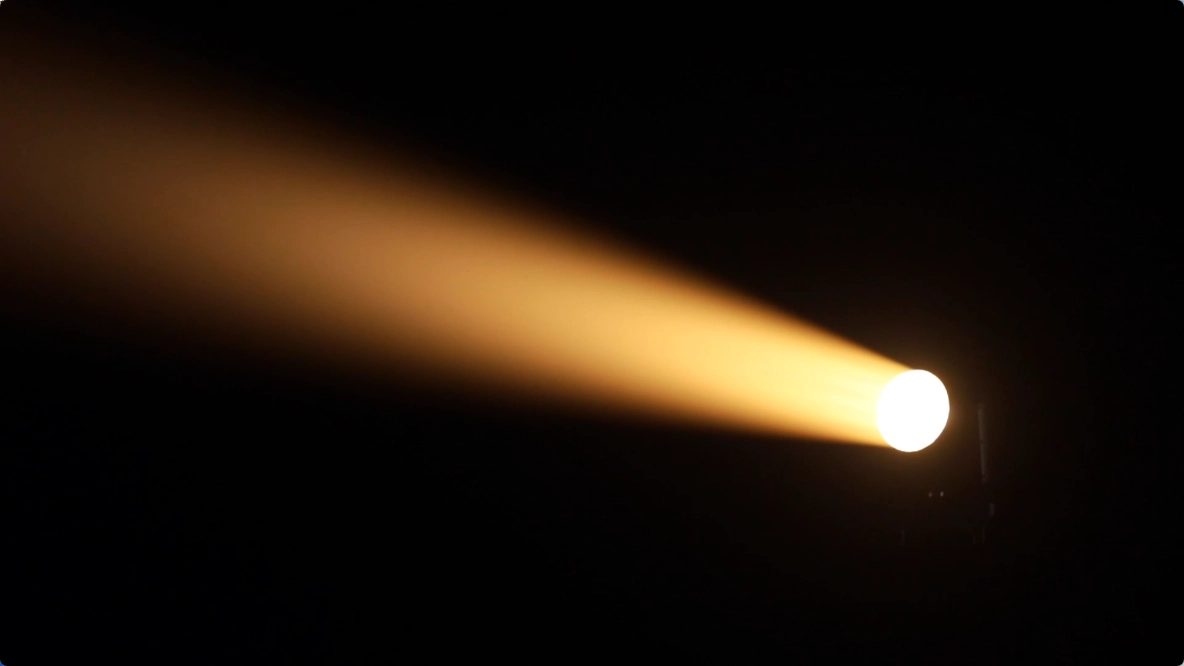

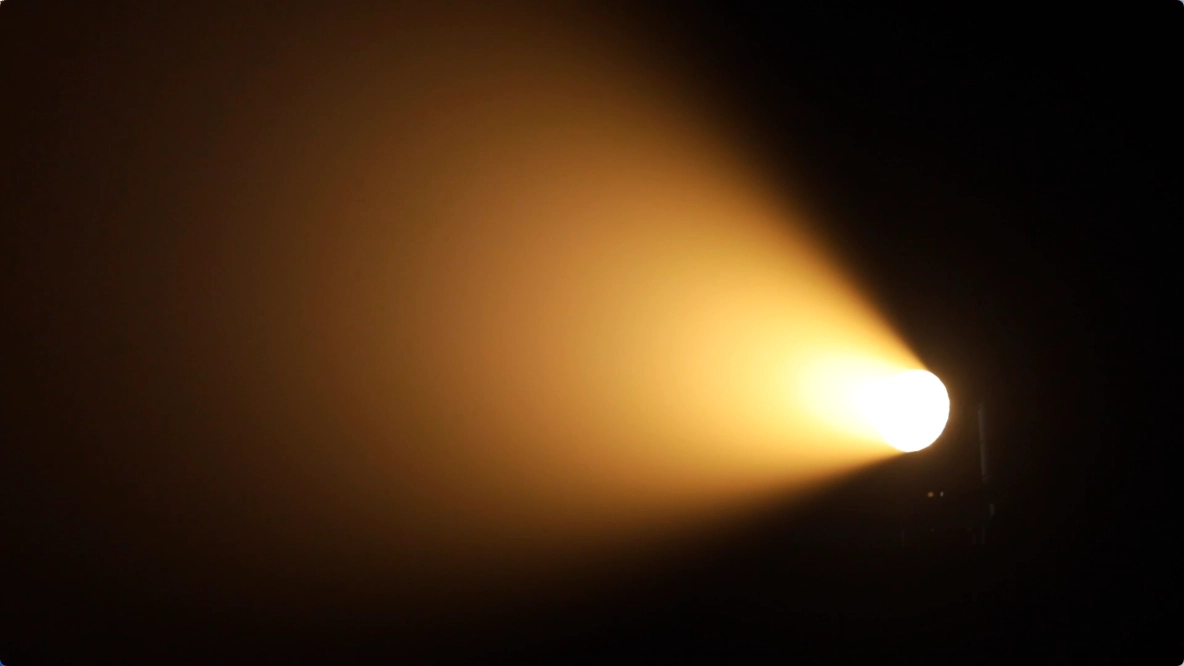

- Optical System and Zoom: Motorized linear zoom from 6° to 55° enables rapid transitions from a punchy narrow beam to a broad, homogeneous wash without chromatic shadows.
- Color Synthesis and Calibration: Advanced RGBL 4-color mixing covers a color temperature range of 2400–10000 K, featuring a virtual color wheel with calibrated white presets and 8-bit resolution (4.29 billion colors).
- Dynamic Effects and Pixel Mapping: Full individual pixel control across all emitters, built-in Liquid Effect, and 2D/3D graphical patterns with dedicated speed and fade rate adjustments.

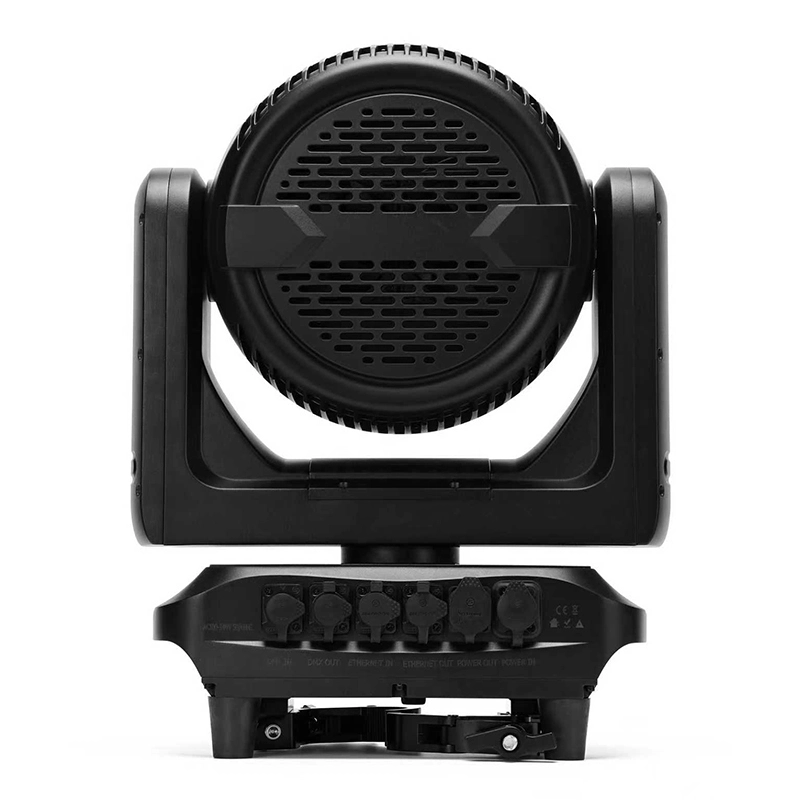

- Control and Interfacing: Native support for DMX512, RDM, Art-Net, and sACN protocols across 26/50/50/127 channel profiles, invertible LCD screen, and sealed IP65 connectors for powerCON TRUE1, XLR 3/5-pin, and RJ45 etherCON.
Application Scope

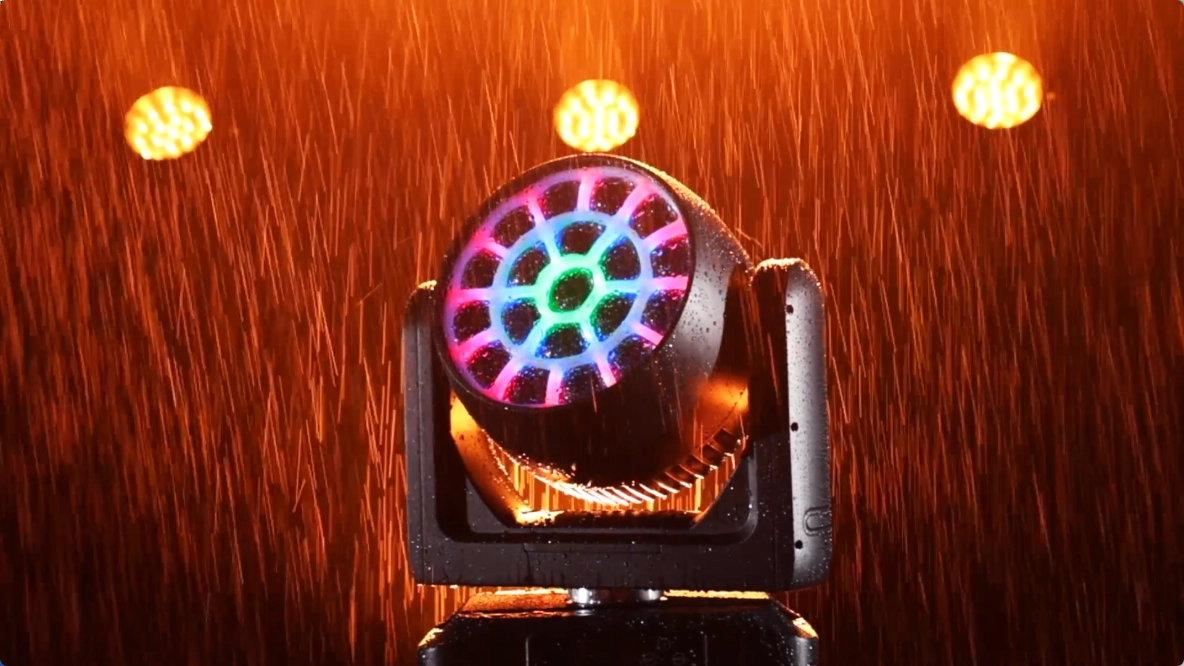

A rugged IP66 enclosure combined with a compact 17 kg net weight makes the fixture dependable for touring rigs, festival stages, and high-demand outdoor installations under harsh environmental conditions.
03 // TECHNICAL SPECIFICATIONS
Specifications

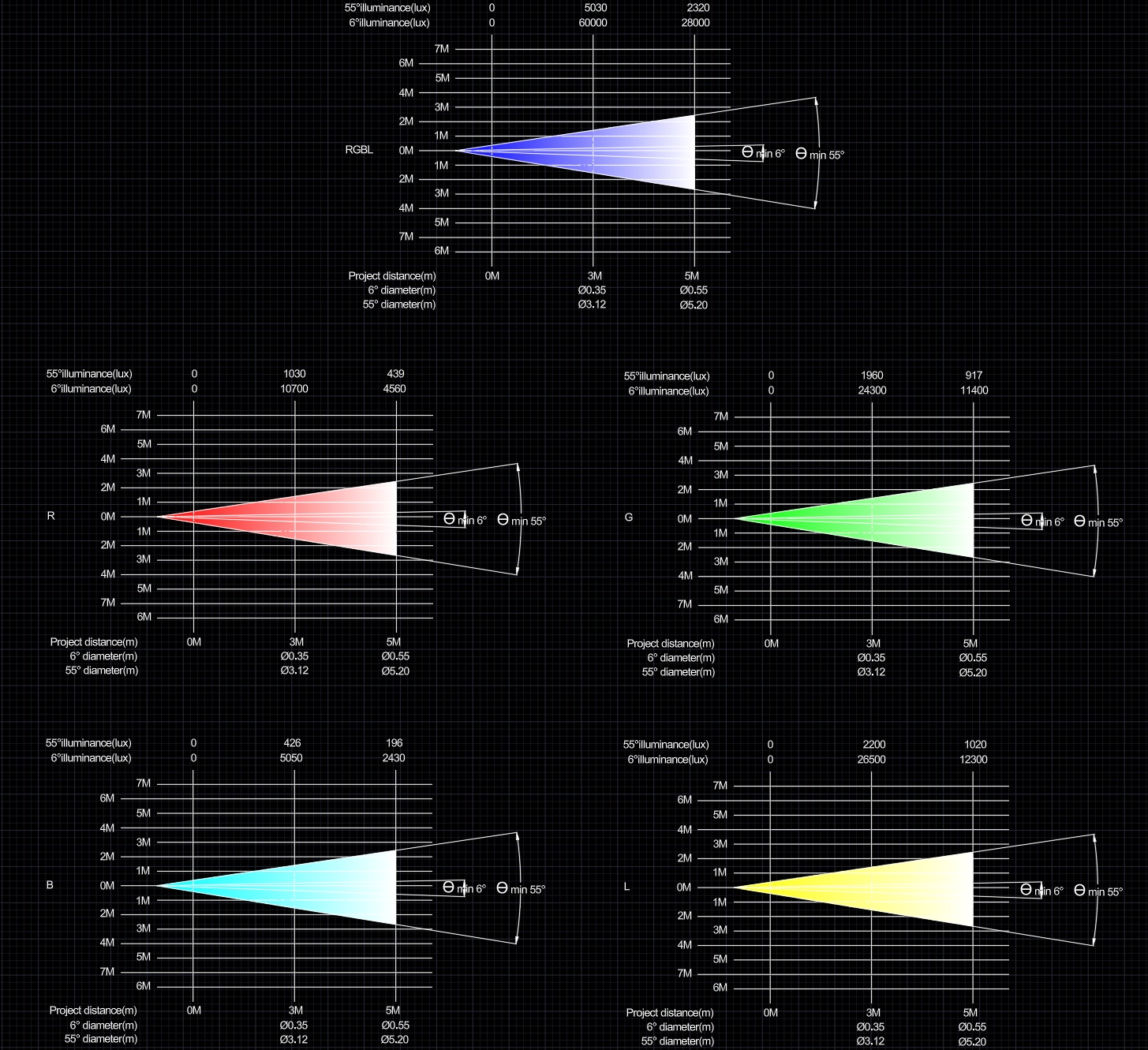

Zoom range
6–55°
Strobe
1–20 Hz (flashes per second)
Tilt movement
270° (16-bit)
Primary light source
19 × 50W RGBL 4-in-1 LED
Backlight engine
210 pcs RGB 3-in-1 LED matrix
Light source lifetime
< 40,000 h
Color mixing
RGBL 4-color mixing (RGB-S, 4.29 billion colors)
Color temperature
2400–10000 K
Color wheel
Virtual color wheel with white CCT presets
Control protocols
DMX512, RDM, Art-Net, sACN
DMX channels
26/50/50/127 channels
Control connectors
IP65 XLR 3/5-pin, IP65 etherCON RJ45
Power consumption
950 W (maximum)
Power connectors
IP65 powerCON TRUE1

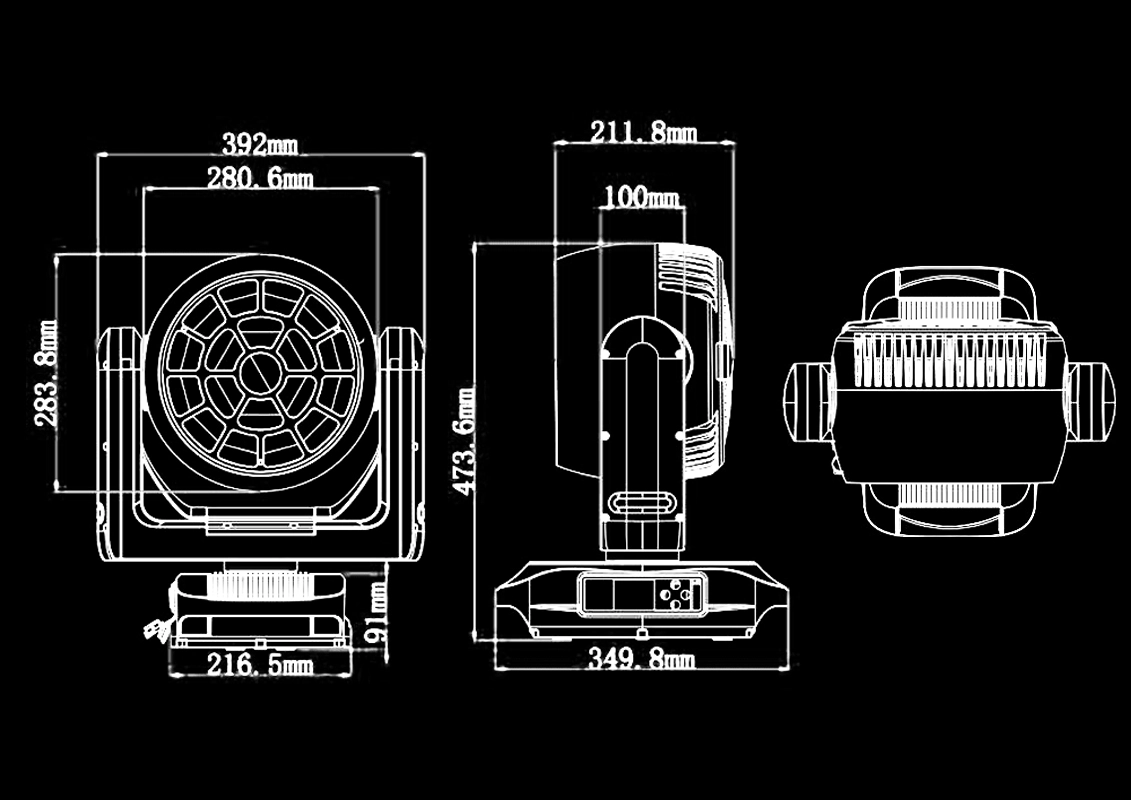

Fixture dimensions
349 × 216.5 × 350 mm
Net weight
17 kg
Fixture type
IP66 All-weather LED Wash / Beam / Effect Moving Head
Pixel mapping
Individual control of each pixel
Dynamic effects
Liquid Effect, 2D & 3D graphic effects, built-in patterns
Dimmer
Electronic 0–100%
Pan movement
540° (16-bit)
Position correction
High-speed drive system with auto P-T repositioning
Display
Graphic LCD display with flip function
IP rating
IP66 (IP65 sealed connectors)
