GML MOLY PATT Retro Stage Tungsten LED Fixture

Concept and Optical Performance

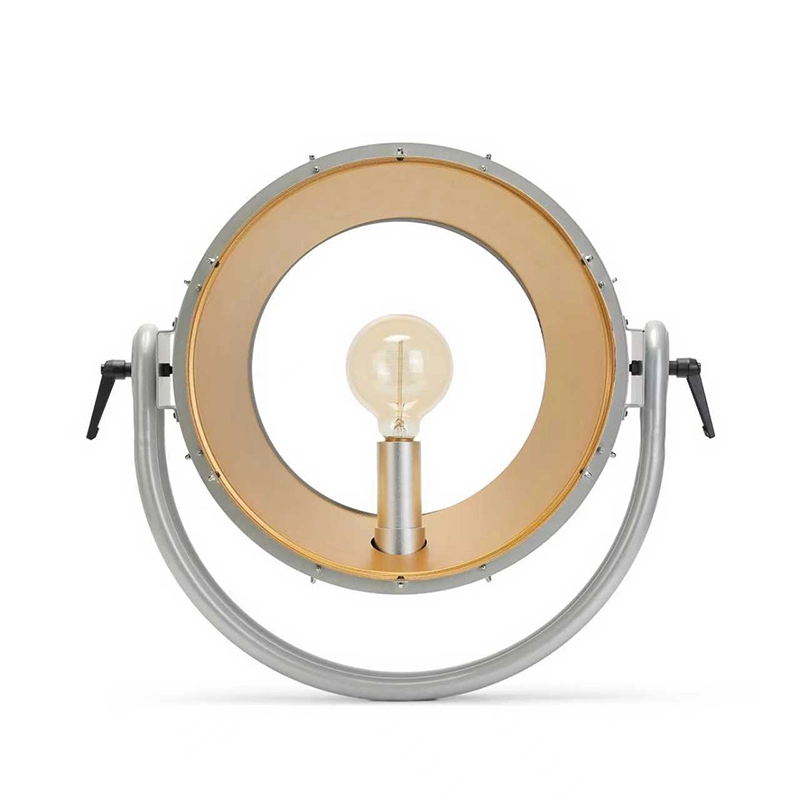

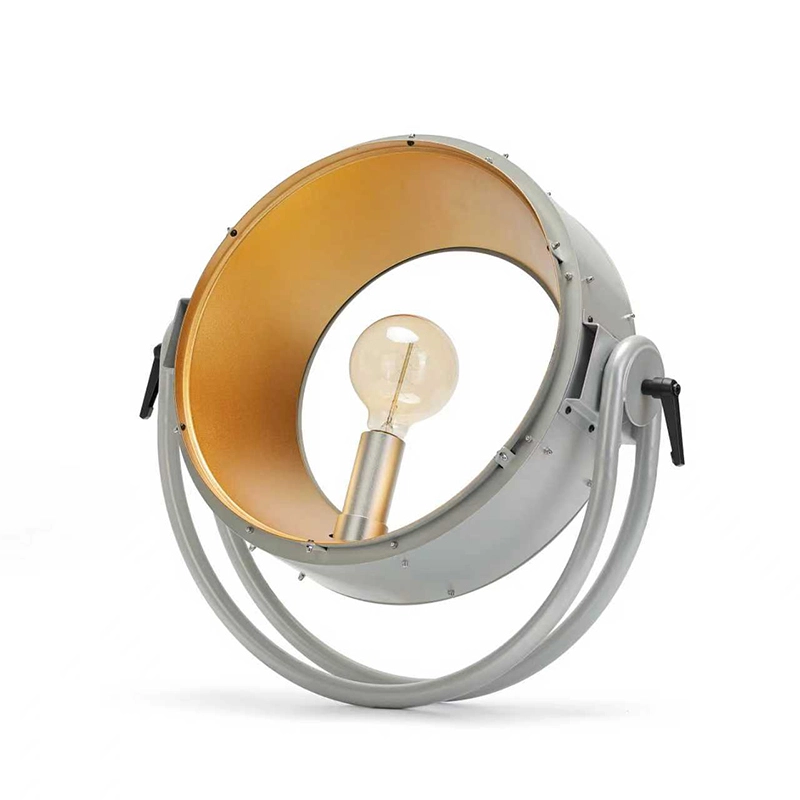

The GML MOLY PATT is a vintage-style decorative stage luminaire engineered for broadcast studios, concert tours, theatrical scenography, and high-end photographic sets. The optical core utilizes an energy-efficient 40W Tungsten LED lamp delivering an authentic 2100K warm white color temperature with an operational lifespan of 15,000 hours. A parabolic aluminum reflector with a gold-brown coating diffuses the warm light evenly without glare.

Chassis and Thermal Management

The housing is constructed from high-grade aluminum alloy relying on convection passive heat dissipation, ensuring 100% silent operation essential for acoustic venues and live recording environments. The IP20-rated enclosure measures 550 × 130 × 490 mm with a lightweight chassis of 3.5 kg.

Control and Connectivity

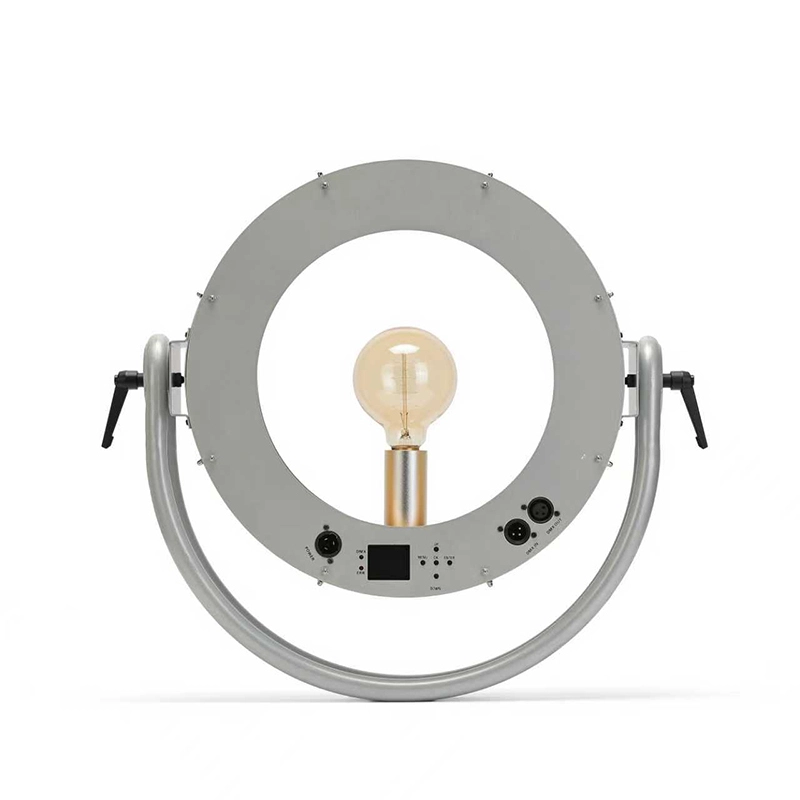

Control implementation includes USITT DMX512 and RDM across a 1-channel profile alongside smooth 0–100% electronic dimming. Addressing and status monitoring are handled via an onboard LED display panel. Data connections utilize 3-pin XLR sockets In/Out. Total electrical consumption is 50W.
