GML MINI BSW 380

Concept & Optical Performance

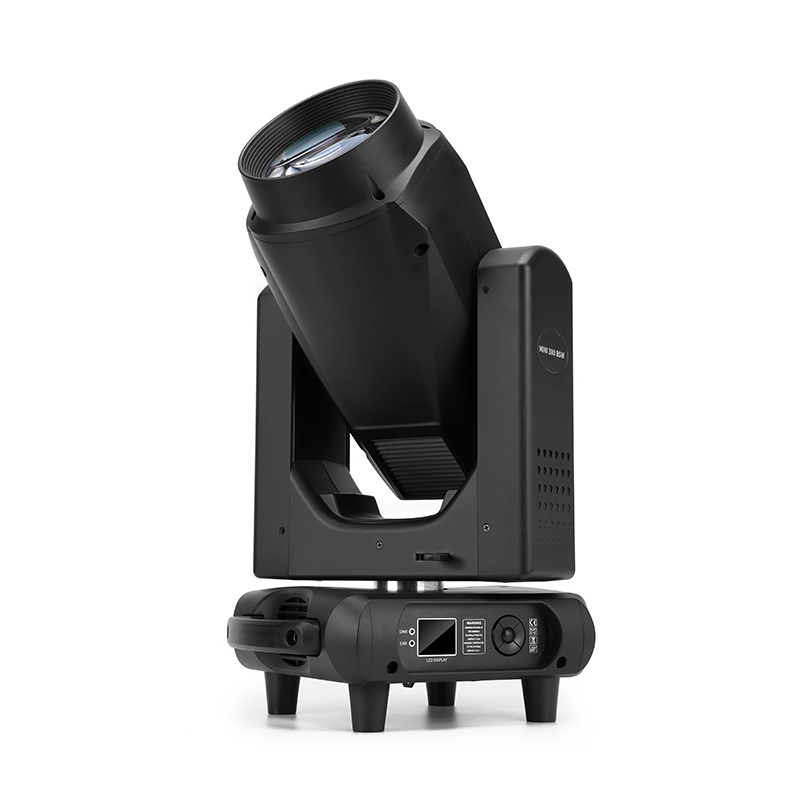

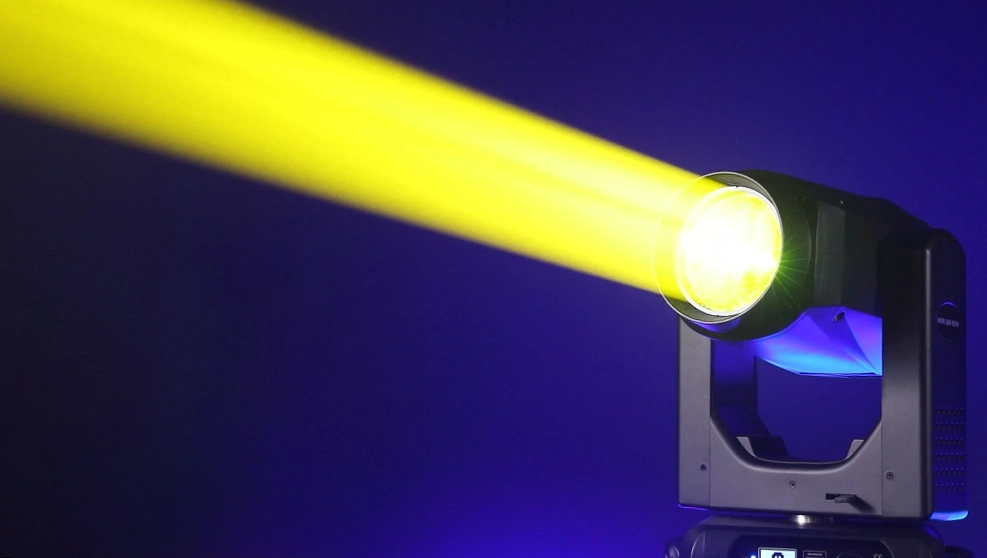

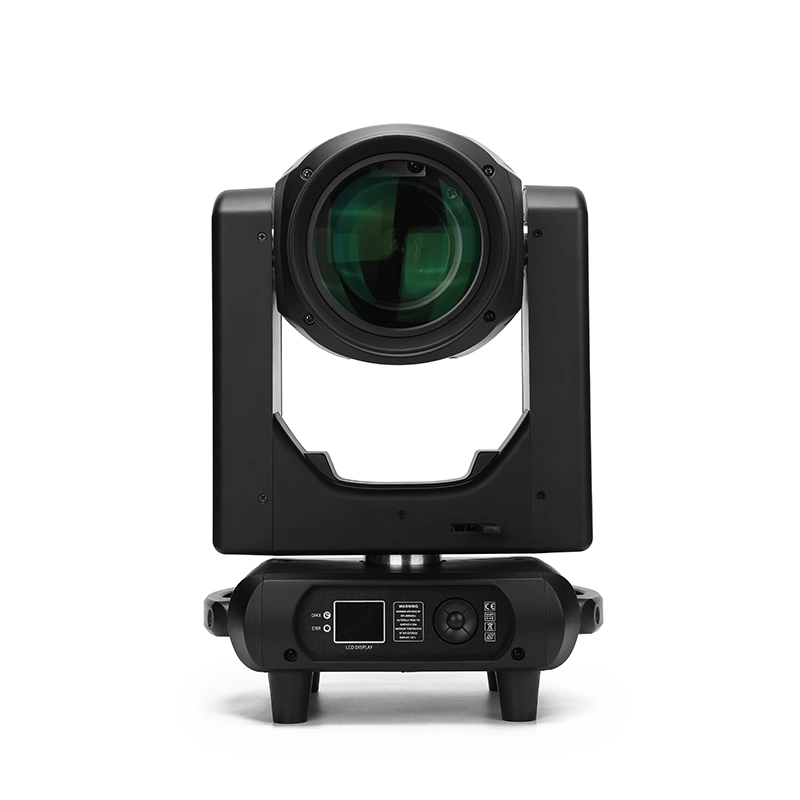

GML MINI BSW 380 is an agile and versatile Beam Spot Wash hybrid moving light built around an Osram Sirius HRI 371W+ discharge lamp at 7000 K. Weighing only 16.8 kg, it incorporates a motorized optical zoom train continuously adjustable from 2° to 40°.

Key Functional Features

• Optics & Focus: electronic focus, 2–40° linear zoom, and an independent frost filter delivering smooth, uniform wash coverage.

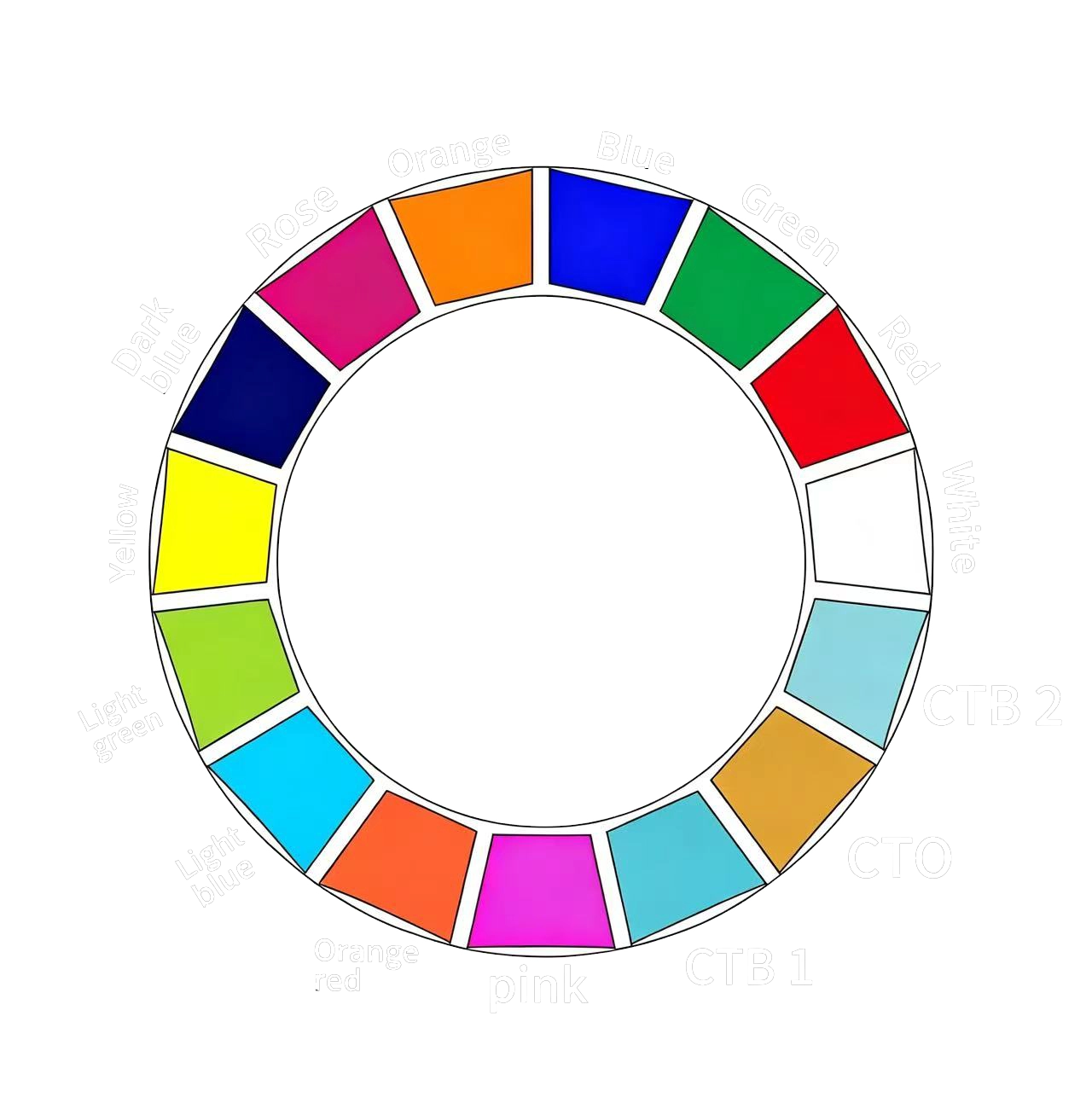

• Color Engine: 14 dichroic filters plus white with integrated CTO and CTB correction filters, half-color mode, and pre-set macros.
• Gobo Projection: 8 interchangeable rotating glass gobos and a static gobo wheel carrying 14 patterns (6 glass + 7 metal).
• Overlayable Prisms: two indexable rotating prisms (16-facet and 80-facet) capable of simultaneous optical overlay for intricate aerial graphics.

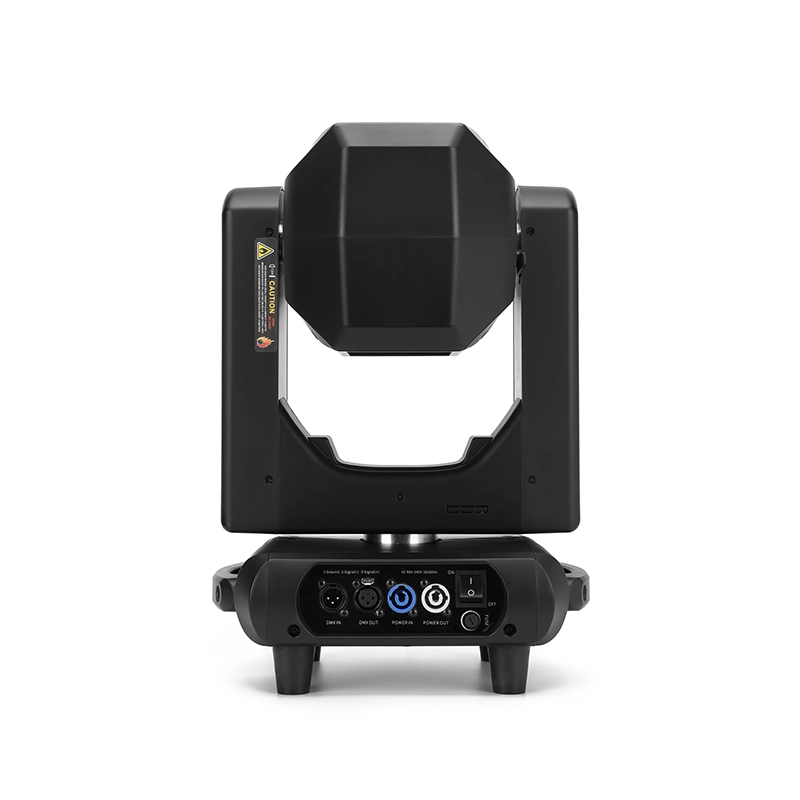

• Motors & Control: high-torque three-phase stepper motors driving 540° Pan and 270° Tilt (16-bit), 17/24 DMX512 channels, 597 × 338 × 264 mm frame.

Applications

With its lightweight 16.8 kg chassis, moderate 450W power draw, and full BSW functionality, the fixture is engineered for theatres, TV studios, rental houses, and live performance venues.
