FT1200 BSWF

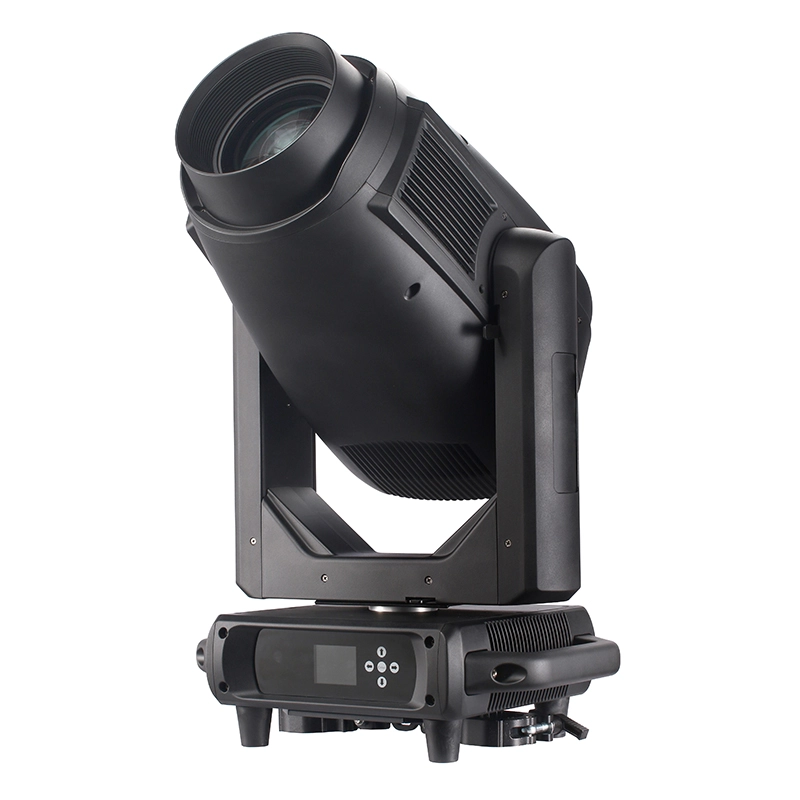

GM-L FT1200 BSWF Profile is a premier flagship LED moving head luminaire in the Profile / Spot / Wash / Framing category, engineered for arena concert tours, large-scale stadium spectacles, major theatrical stages, and broadcast television productions.

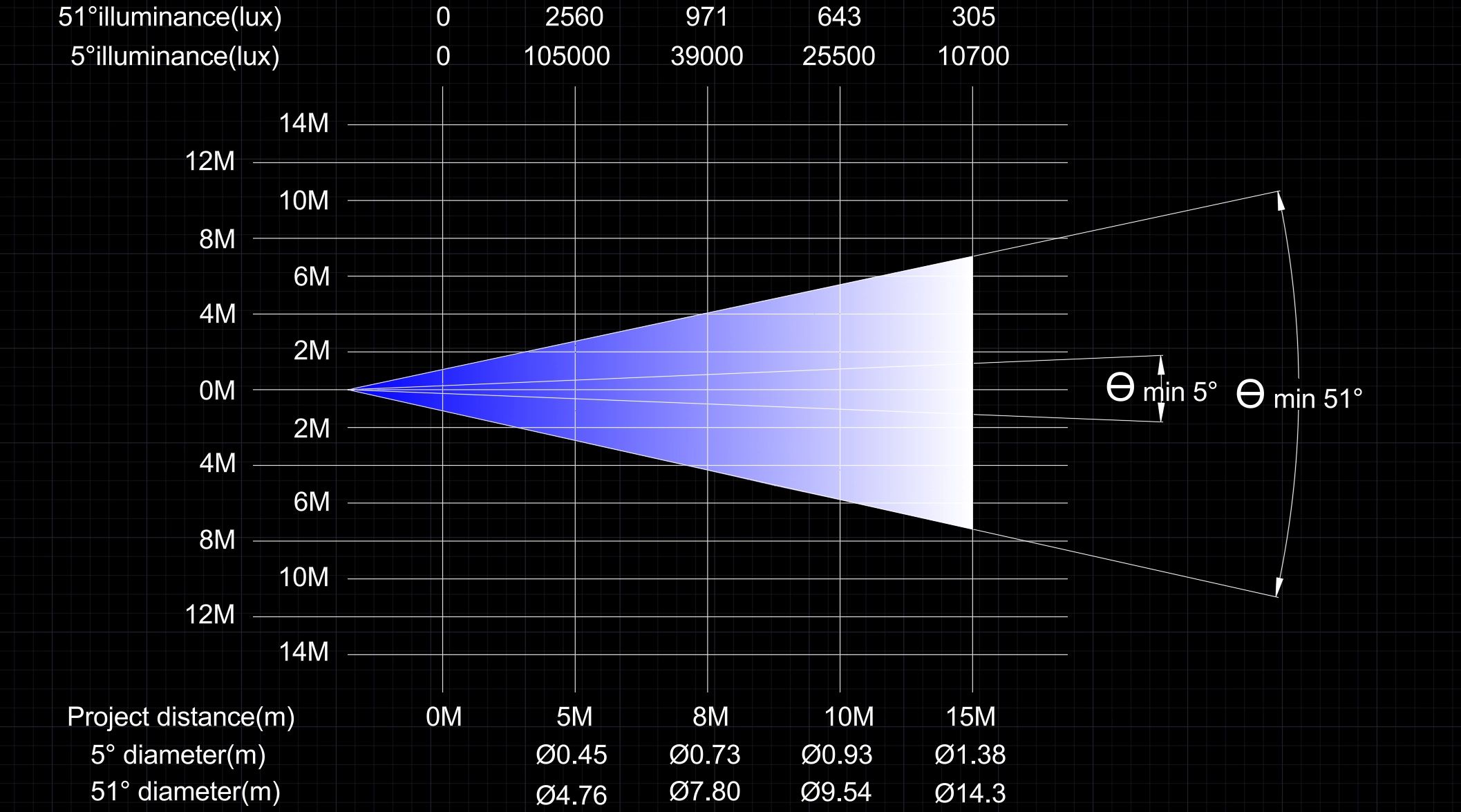

The fixture is driven by a high-output 900W white LED engine delivering exceptional color rendition (native CRI 98 in standard configuration) at 6500K. The precision optical assembly pairs a 5°–50° linear motorized zoom with motorized focus to generate 86,323 lux at 5 meters (0.495m beam diameter at 5°), maintaining flat-field uniformity without distortion across the full zoom range.

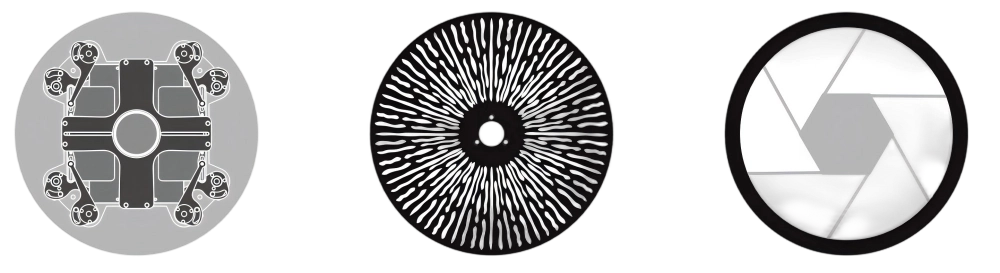

The framing shutter module features four independently motorized shutter blades, each capable of complete beam cutoff, blade tilt from -30° to +30°, and overall system rotation of ±90°. This enables accurate edge alignment to architectural lines, scenic borders, and projection surfaces.

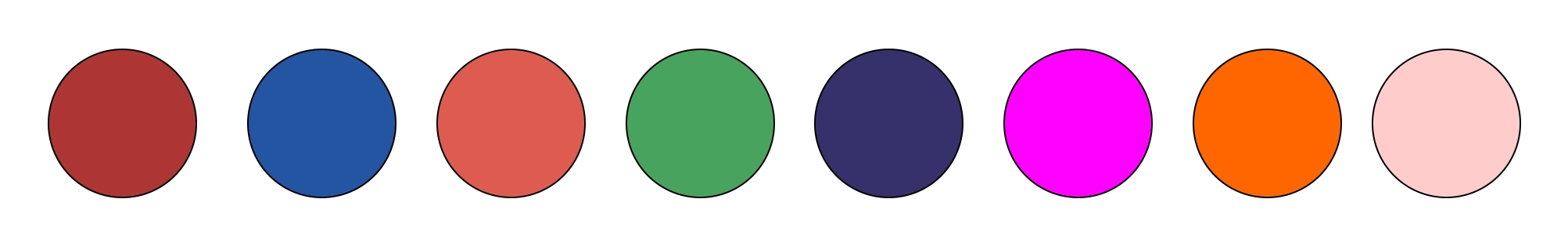

Color reproduction is powered by linear CMY flags, an independent linear CTO filter (6500K to 3000K), and a 7-color dichroic wheel (including Deep Red, Deep Blue, Orange, Green, Congo Blue, Magenta, and a dedicated 92 CRI filter). Projection optics include a 7-slot rotating glass gobo wheel, an 8-slot fixed glass gobo wheel, a dedicated continuous fire/water animation wheel with 10 built-in macros, two independently controllable prisms (4-facet circular and 6-facet linear), a motorized iris with macro pulse effects, and a dual-stage frost system (Light and Medium Frost) for seamless hybrid wash coverage.

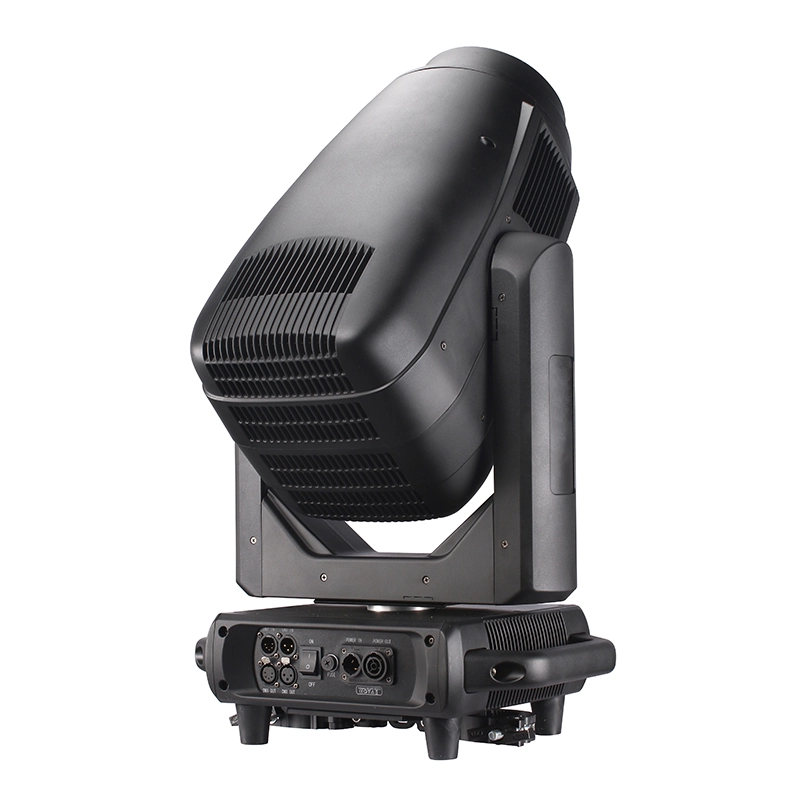

Movement covers 540° Pan and 270° Tilt with 16-bit resolution, encoder position feedback, and a dedicated Follow Spot mode for manual pan/tilt operation. Control is handled via DMX512 (54 / 56 channels, fully compatible with the Robe Forte channel profile), RDM, and optional Art-Net through 3-pin and 5-pin XLR ports and Neutrik PowerCON TRUE1 in/out power connections.
