GM-L · DISCHARGE LAMP
GML BEAM KING IP CMY
Ushio 450W discharge lamp (optIP65
IP65
GML BEAM KING IP CMY
Product Overview
Concept & Optical Performance

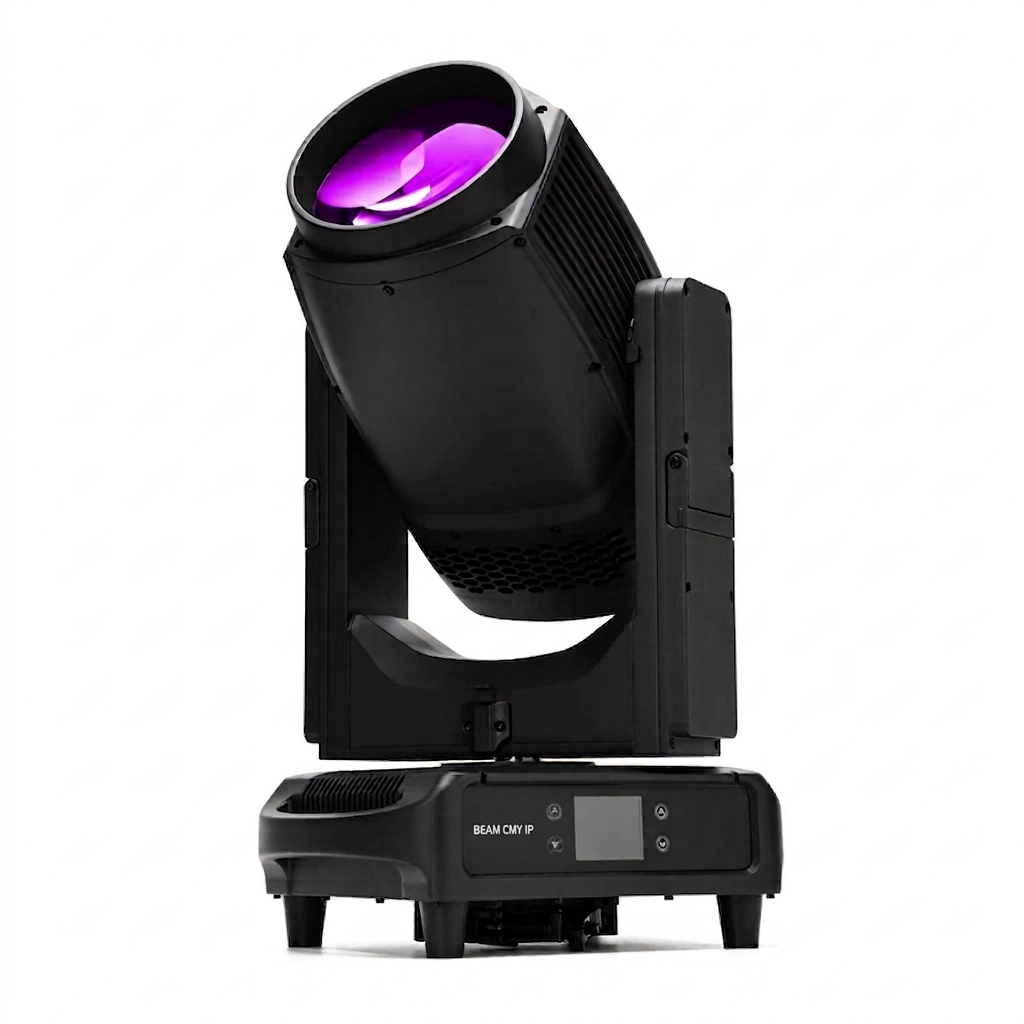

GML BEAM KING IP CMY is an all-weather IP66 Beam moving head enclosed in a durable magnesium-aluminum alloy housing engineered for demanding outdoor environments. Its optical train features an Ushio 450W discharge lamp (optional Philips 420W LL) at 7800 K paired with a massive 180mm front lens delivering an ultra-tight 1.7° solid beam.
Key Functional Features
- Optics & Frost: 180mm front lens, electric focus system, and a 15° linear heavy frost filter for smooth wash transitions.

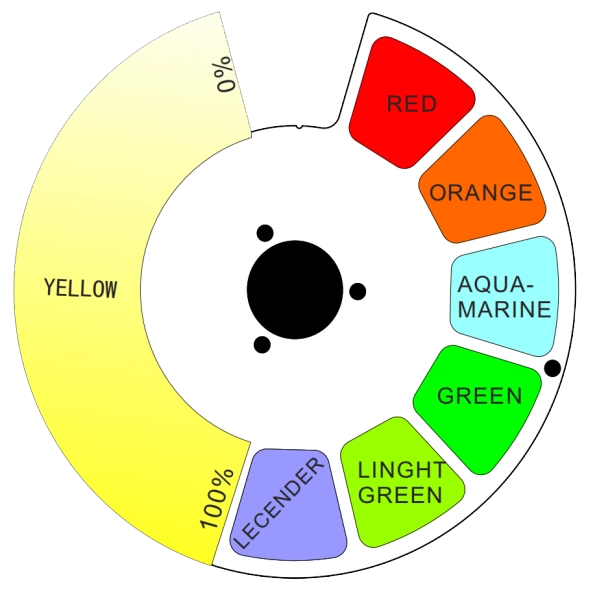

- CMY & Linear CTO: full CMY color mixing system, continuous 3600–6600 K CTO control, and a 12-color dichroic wheel.
- Gobo Projection: static gobo wheel equipped with 17 fixed metal patterns plus open.
- Prism Engine: 6 prisms with bi-directional variable-speed rotation creating 15 layered multi-beam visual configurations.
- IP66 Mechanics & IO: IP66 weatherproofing, pan/tilt transit locks, hidden side carry handles, Seetronic PowerCON True1 in/out, Seetronic 3-pin XLR, and DMX512/RDM with optional Art-Net/CRMX.
Applications
Engineered for stadiums, open-air music festivals, architectural illuminations, and outdoor rental tours, the fixture operates reliably in any orientation regardless of adverse climate conditions.
Product variants
2 variants available
Active:Standard
Standard:IP65-rated weather-proof fixture with CMY color mixing and standard 540° pan rotation.
03 // TECHNICAL SPECIFICATIONS
Specifications

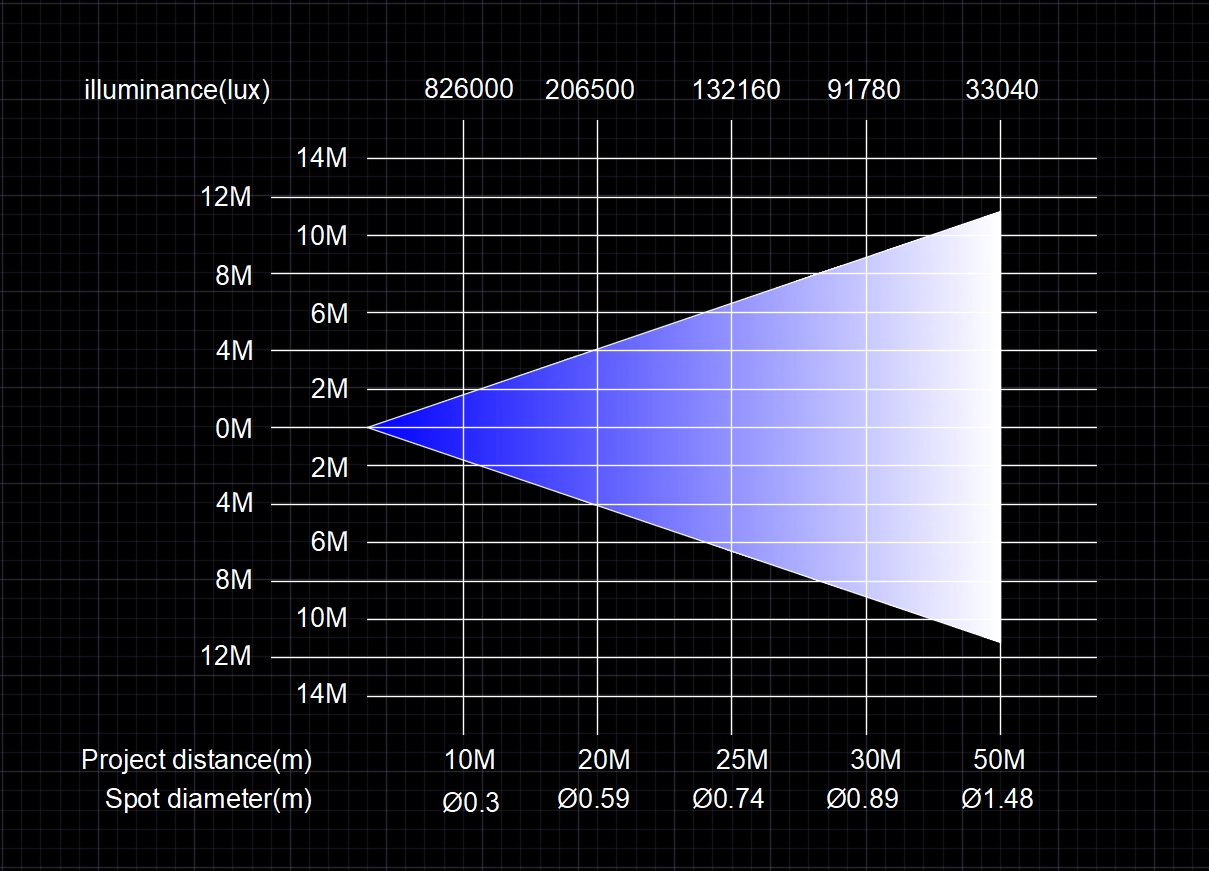

Beam angle
1.7°
Strobe
Multiple speed strobe
Tilt movement
270°
Pan/Tilt resolution
16-bit scanning with auto position correction
Light source
Ushio 450W discharge lamp (optional Philips 420W LL)
Light source lifetime
3500 hours
Color temperature
7800 K
Color rendering index (CRI)
up to 77
Color mixing
Linear CMY system
Color wheel
12 dichroic colors + open
DMX channels
21 CH
Control protocols
DMX512, RDM (optional Art-Net, CRMX)
Control connectors
Seetronic XLR 3-pin in/out (optional 5-pin)
Lamp power
450 W (optional 420W)
Input voltage
AC 100–240V, 50/60Hz
Power consumption
600 W
Power connectors
Seetronic PowerCON True1 in/out
Fixture dimensions
386 × 290 × 684 mm
Net weight
26 kg
Fixture type
All-weather Beam Moving Head IP66
Front lens diameter
180 mm
Focus
Electric focus system
CTO system
3600–6600 K linear adjustable CTO
Static gobos
17 gobos + open
Frost filter
15° linear heavy frost for wash effect
Prism
6 prism types with bi-directional rotation (15 prism effects)
Dimmer
0–100% smooth dimming
Pan movement
540° (Infinity Pan version available)
Display
4 touch buttons
IP rating
IP66
Housing material
Magnesium aluminum alloy
