GM-L · DISCHARGE LAMP
GML BEAM KING 380/420
380W discharge lamp (optional
GML BEAM KING 380/420
Product Overview
Concept & Optical Performance

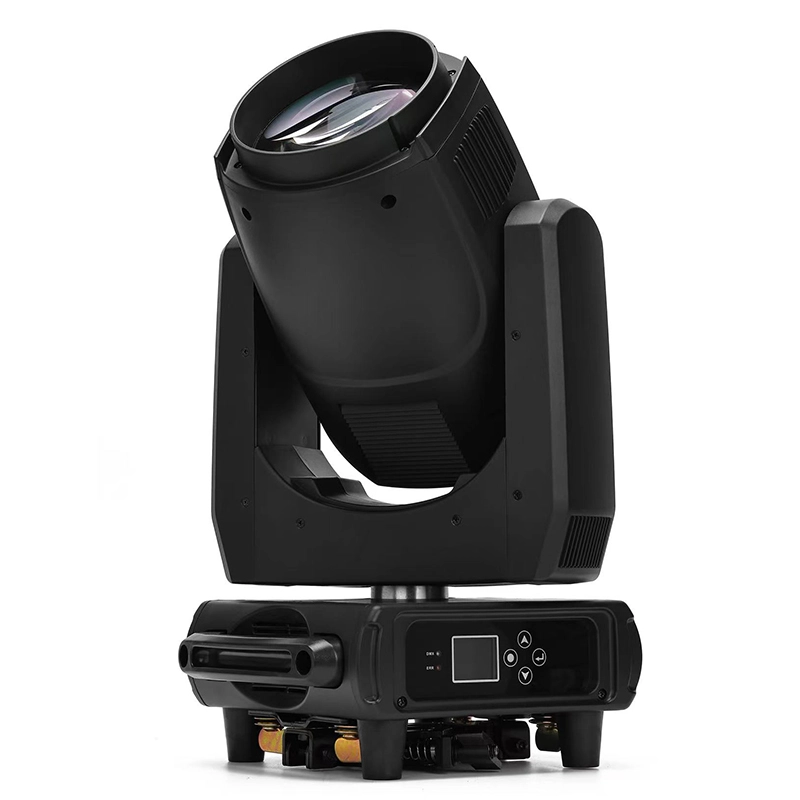

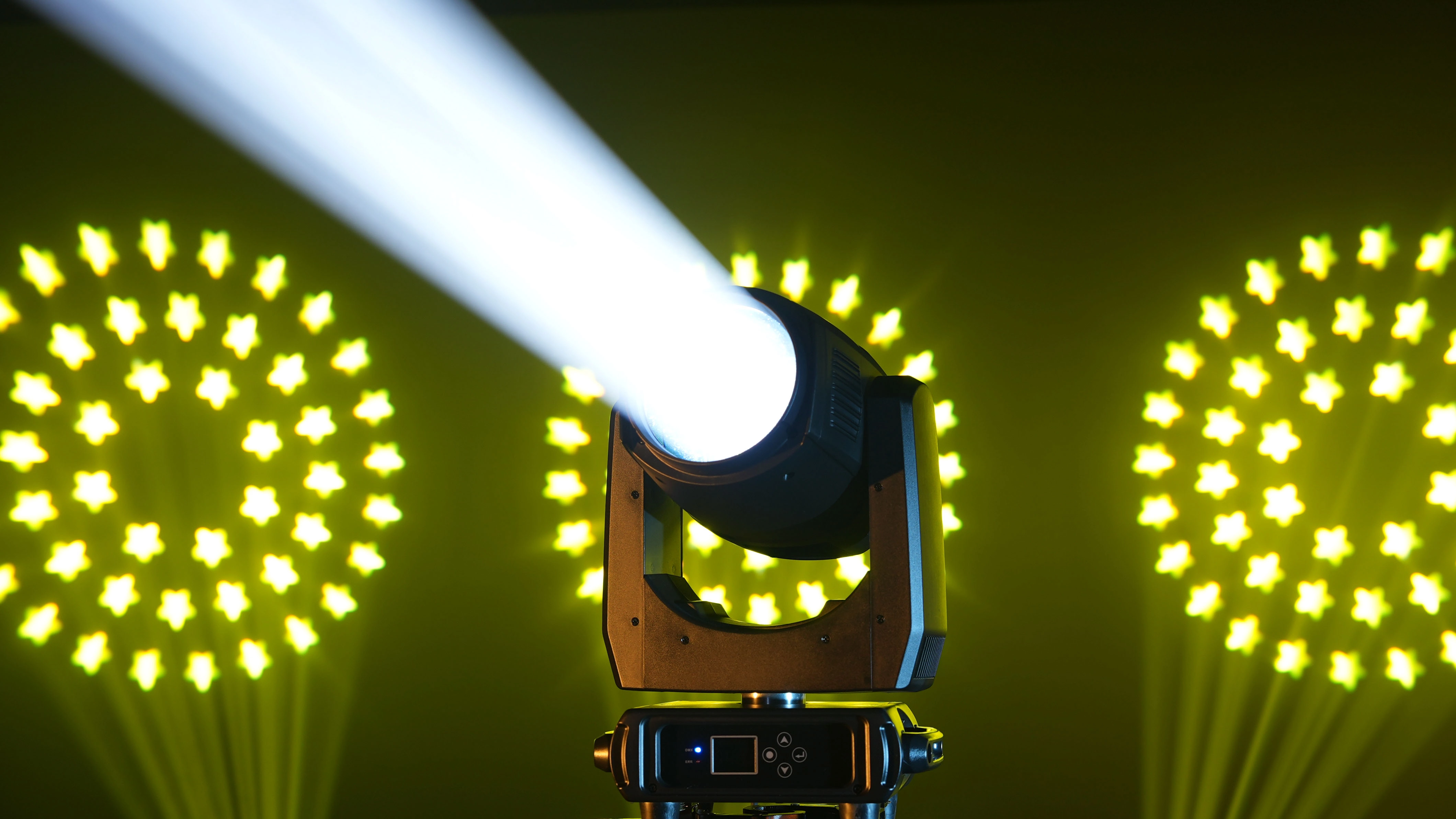

GML BEAM KING 380/420 is a high-speed narrow-beam moving head engineered for 380W or 420W discharge lamps with a 7800 K color temperature. Its 152mm front lens projects a razor-sharp 2° beam maintaining exceptional intensity across long throw distances.
Key Functional Features
- Optics & Focus: 152mm optical lens, 0–100% smooth linear focus, and variable-speed strobe.

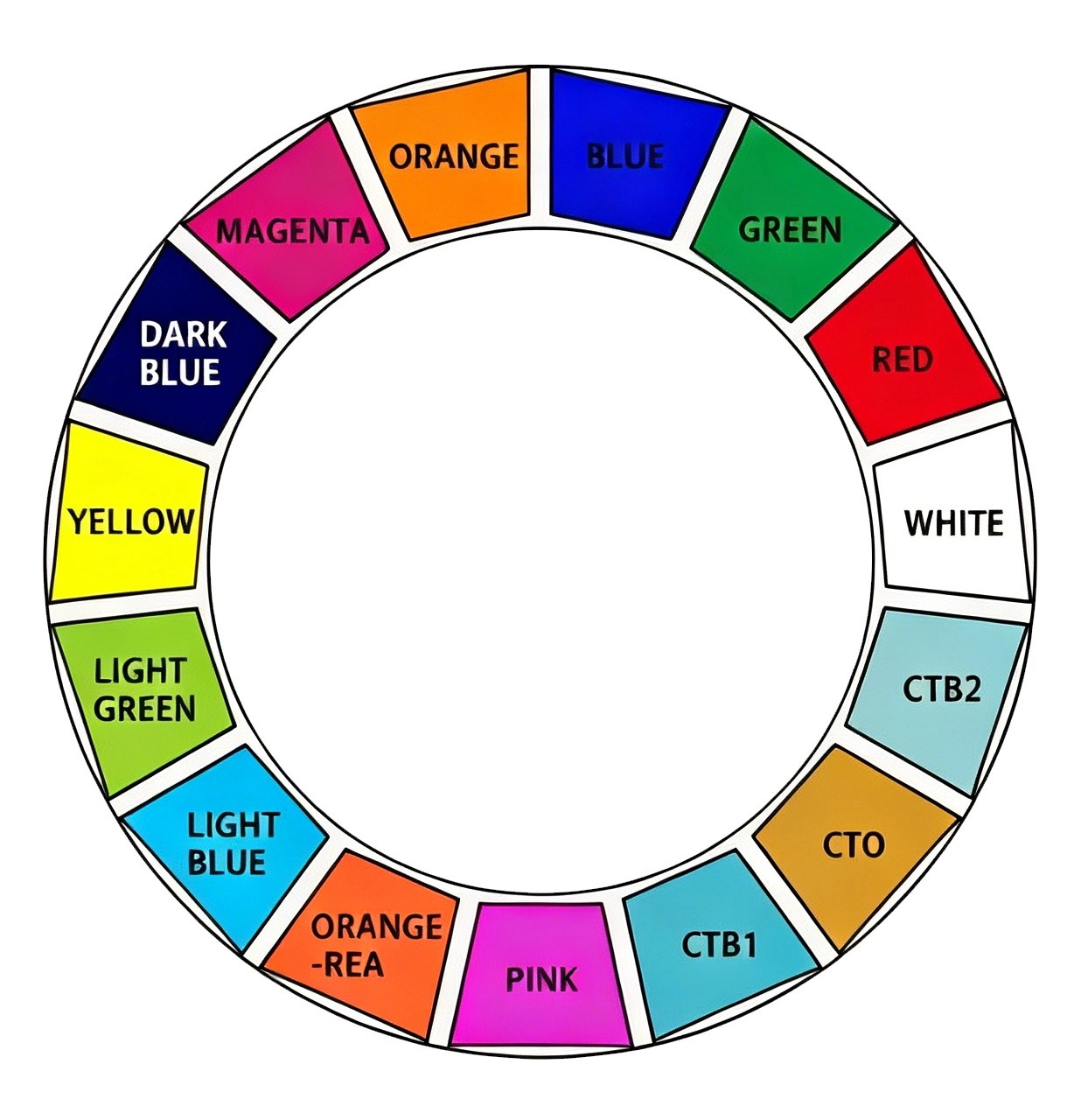

- Color System: dedicated color wheel with 14 dichroic colors plus open, supporting bi-directional rainbow effects.
- Gobo Engine: static gobo wheel featuring 13 fixed metal gobos plus open, including 2 fixed glass patterns.
- Prism Package: 4 distinct prism configurations with bi-directional variable rotation producing up to 8 layered aerial beam effects.
- Mechanical & Control: 540° Pan and 270° Tilt with 16-bit scanning and automatic position correction, 17 DMX512/RDM channels, net weight 13.2 kg.
Applications
With its compact 13.2 kg chassis, rugged metal structural components, and IP20 rating, the fixture is tailored for touring productions, live concerts, nightclub venues, and mobile stage rentals.
Product variants
2 variants available
Active:380W
380W:Base configuration with a 380W discharge lamp for sharp, dense beam aerials.
03 // TECHNICAL SPECIFICATIONS
Specifications

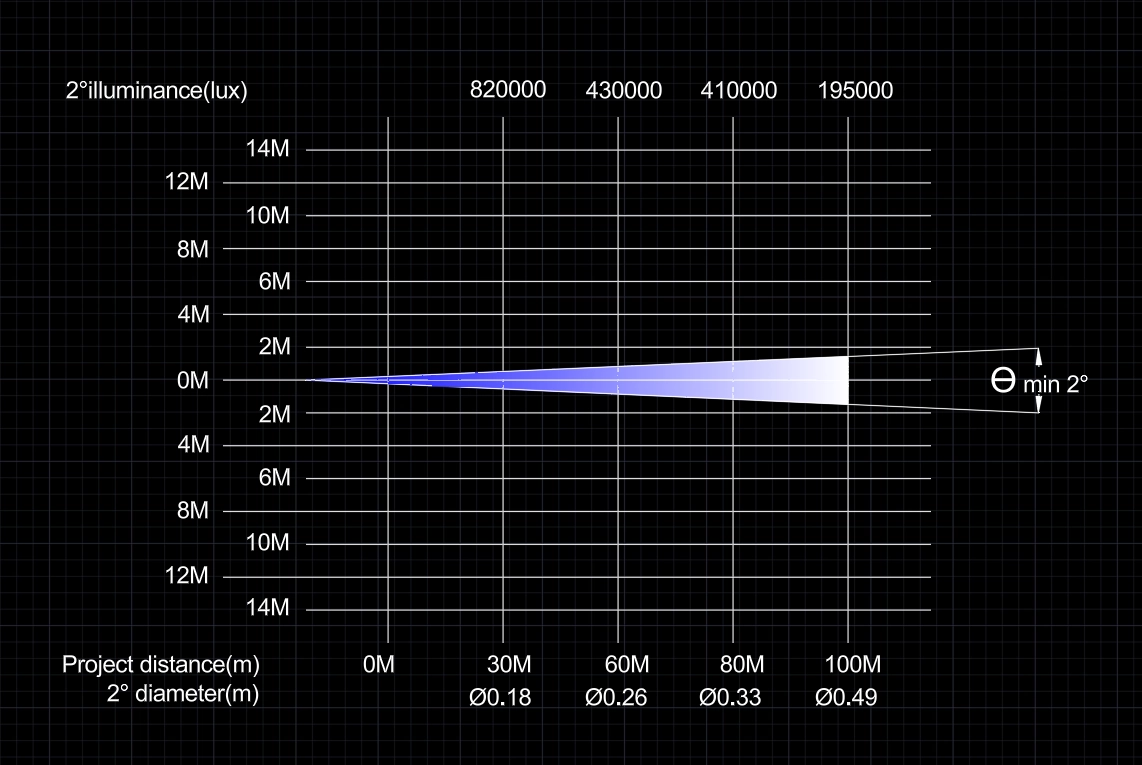

Beam angle
2°
Strobe
Multiple speed strobe
Tilt movement
270°
Pan/Tilt resolution
16-bit scanning with auto position correction
Light source
380W discharge lamp (optional 420W)
Light source lifetime
3500 hours
Color temperature
7800 K
Color wheel
14 colors + open
DMX channels
17 CH
Control protocols
DMX512, RDM

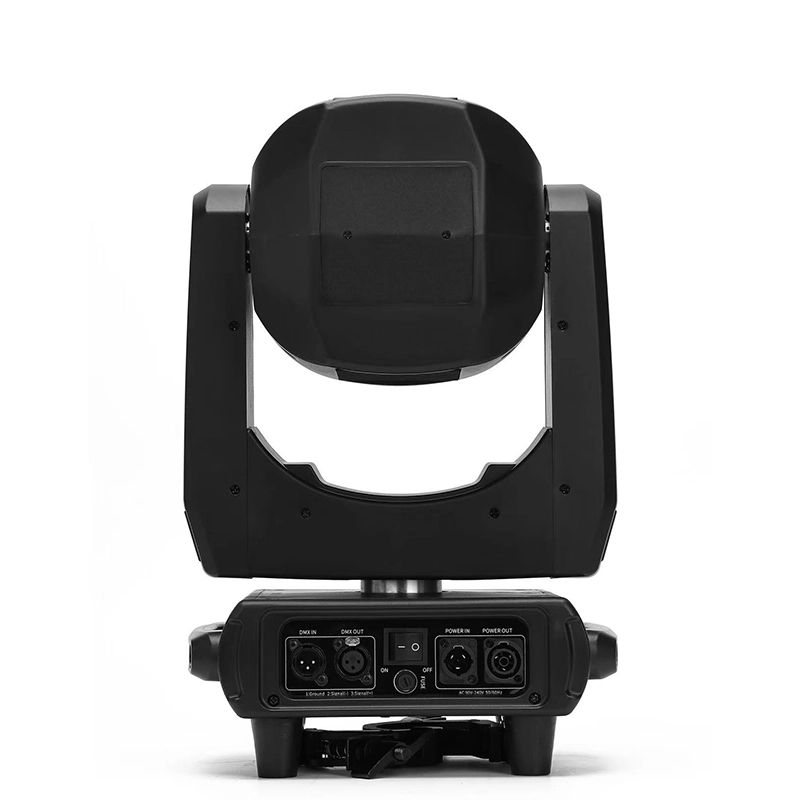

Control connectors
XLR 3-pin in/out (optional 5-pin)
Lamp power
380W (optional 420W)
Input voltage
AC 100–240V, 50/60Hz
Power consumption
380 W
Power connectors
PowerCON in/out (optional TrueCON)
Fixture dimensions
316.5 × 252.6 × 538.4 mm
Net weight
13.2 kg
Fixture type
Beam Moving Head
Front lens diameter
152 mm
Focus
0–100% smooth electric focus
Static gobos
13 fixed gobos + open (including 2 glass gobos)
Prism
4 prism types with bi-directional rotation (up to 8 prism effects)
Dimmer
0–100% smooth dimming
Pan movement
540°
Display
4 touch buttons
IP rating
IP20
