GML B-EYE 1960
Zoom 4–60°19 x 60W Osram RGBW 4-in-1 LED
GML B-EYE 1960
Product Overview
Concept & Optical Performance

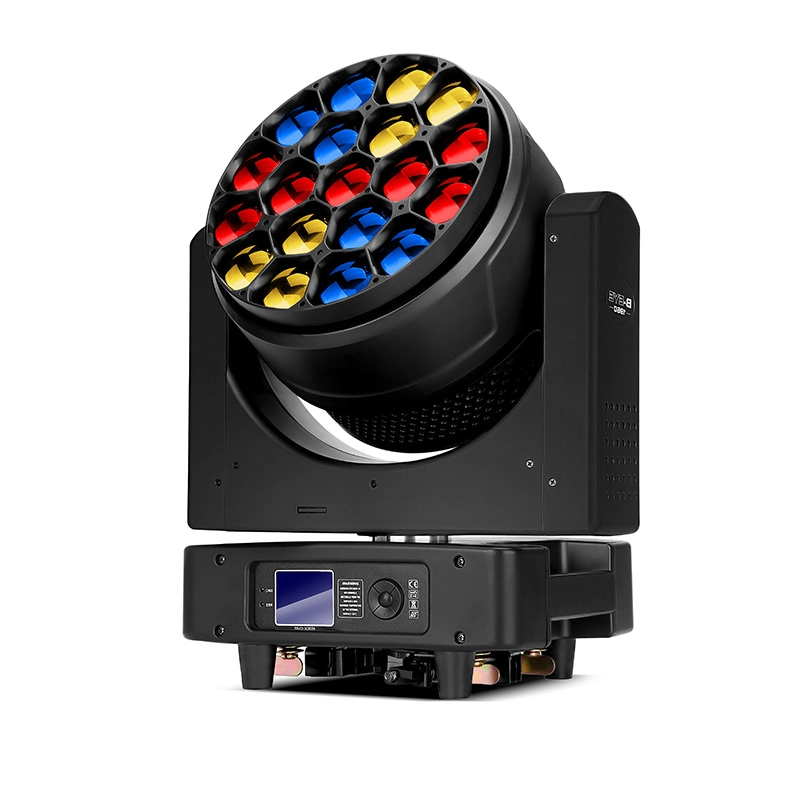

GML B-EYE 1960 is a flagship multi-optical B-Eye moving head powered by 19 ultra-bright 60W Osram RGBW 4-in-1 LEDs with a total electrical consumption of 1300W. Its optical system achieves an expansive 4° to 60° motorized zoom range, transitioning effortlessly from razor-tight parallel aerial beams to wall-to-wall wash coverage with adjustable 2500–8000 K CCT.
Key Functional Features
- Infinite Lens Rotation: front optic array spins bi-directionally without endstops, creating signature kaleidoscopic arrays and Vortex aerial animations.
- Per-Pixel Control: full individual control across all 19 LED cells with embedded dynamic graphic macros and chase sequences.
- Dual Color Modes: software switchable between additive RGBW and subtractive CMY color mixing profiles.
- Dimming Precision & Strobe: 4 selectable linear dimming curves and a 1–25 Hz strobe offering random and pulse flash modes.

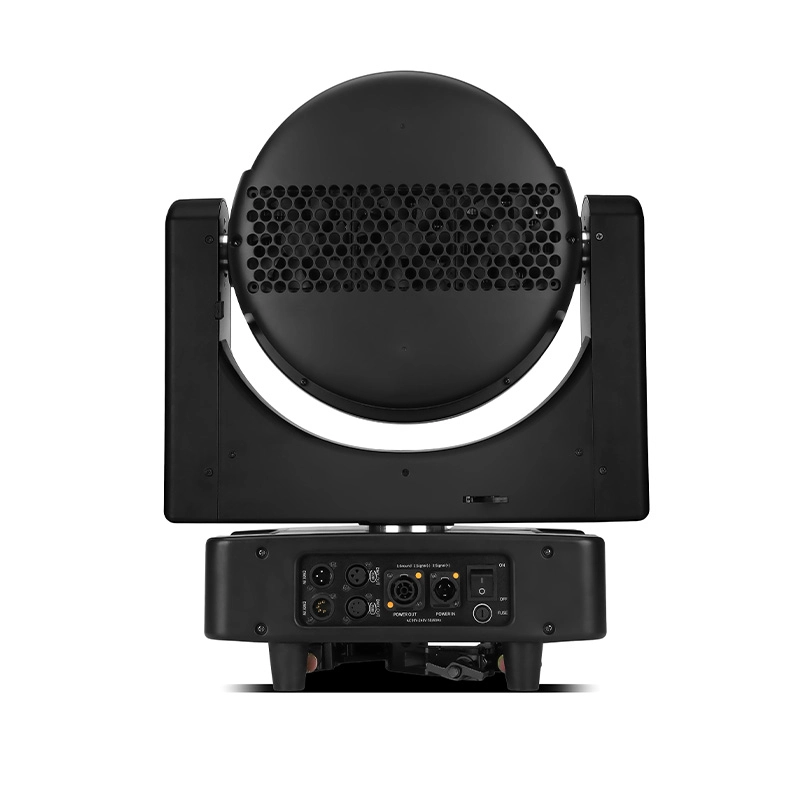

- DMX Flexibility & Hardware: 540° Pan and 270° Tilt (16-bit), comprehensive DMX modes across 21/35/78/92/97 channels, PowerCON in/out and 3-pin XLR, 22.2 kg net weight.
Applications
With 60W emitters per lens and massive output, GML B-EYE 1960 is engineered for arena concert touring, stadium spectacles, prime-time television broadcasts, and festival mainstages.
03 // TECHNICAL SPECIFICATIONS
Specifications
Zoom range
4–60°
Strobe
1–25 Hz, random and pulse flash
Tilt movement
270°
Pan/Tilt resolution
16-bit
Light source
19 x 60W Osram RGBW 4-in-1 LEDs
LED power
1140W (19 x 60W)
Light source lifetime
50,000 hours
Color temperature
2500–8000 K
Color modes
RGBW and CMY
Pixel control
Individual control of each LED
DMX channels
21/35/78/92/97 CH
Control protocols
DMX512
Control connectors
XLR 3-pin in/out
Input voltage
AC 110–240V, 50/60Hz
Power consumption
1300 W
Power connectors
PowerCON in/out
Fixture dimensions
450 × 353 × 546 mm
Net weight
22.2 kg
Fixture type
High-Power LED B-Eye Moving Head
Front lens rotation
Continuous bi-directional infinite rotation (Vortex & Kaleidoscope)
Operating modes
Wash, Beam, Graphic, Effects
Dimmer
4 linear dimming curves
Pan movement
540°
