GM-L · MULTISOURCE LED
GML AURA 760 IP
Zoom 7–45°7 × 60W RGBW 4-in-1 LEDIP65
IP65
GML AURA 760 IP
Product Overview
Concept and Optical Capabilities

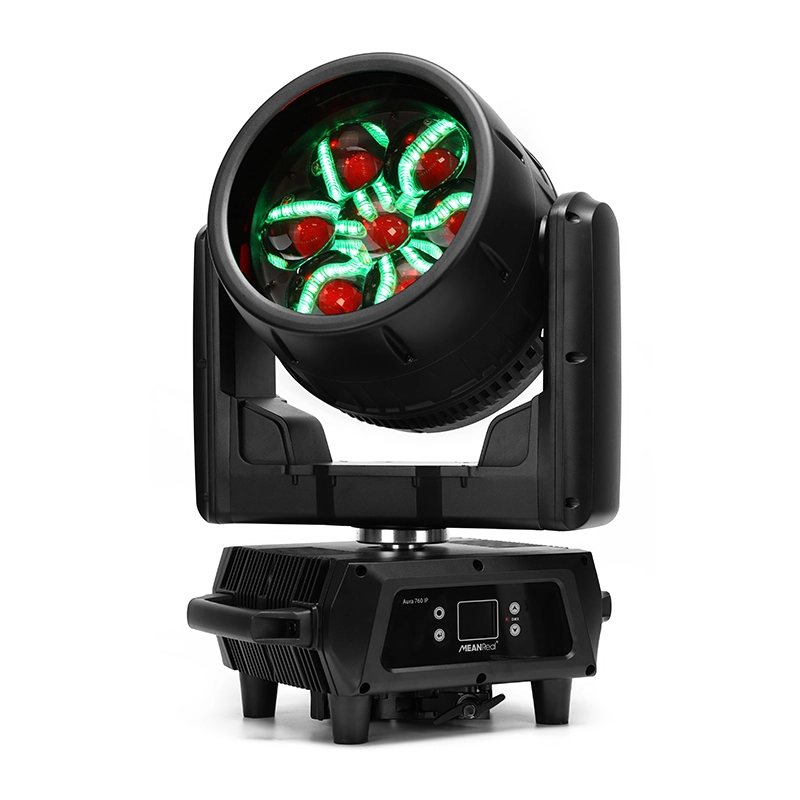

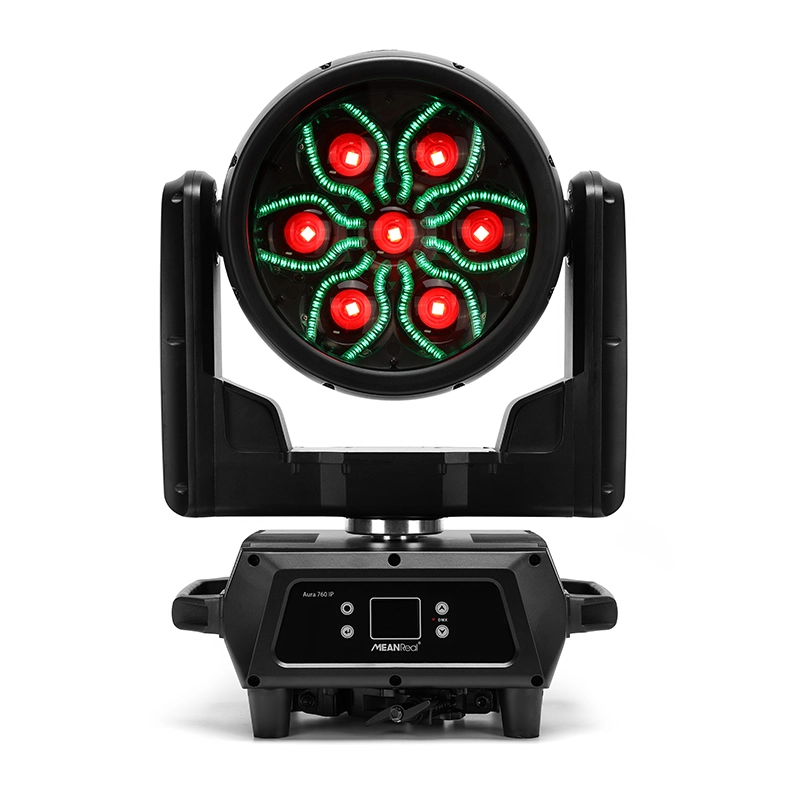

The GML AURA 760 IP is an IP65 all-weather LED moving head designed to deliver high-intensity beams, broad wash coverage, and complex dynamic effects. The fixture integrates a primary optical array of 7 × 60W RGBW 4-in-1 LEDs complemented by an Aura filament system with 12 × 3W RGB filament elements.
Key Functional Features
- Optical System and Continuous Rotation: Precision PMMA lenses with glass light pipes deliver a 7–45° motorized zoom range, paired with an endless bi-directional rotating front lens.
- Specialized Visual Effects: Built-in Vortex and Kaleidoscope capabilities produce intricate aerial geometric textures, running alongside independent Aura filament backlight modulation.
- Pixel Mapping and Dimming: Full individual pixel control for each emitter, 4 selectable linear dimming curves, and a 1–25 Hz strobe with pulse and random flash macros.
- Control and Mechanics: Native DMX512 and RDM control (optional Art-Net and wireless DMX), magnetic encoders for precision Pan/Tilt (540/270°) tracking, 1.77-inch OLED interface, and Seetronic powerCON TRUE1 IP65 connectors.
Application Scope
A die-cast aluminum housing with fire-retardant exterior and adaptive cooling delivers rugged durability across outdoor touring platforms, arena stages, and demanding rental environments.
03 // TECHNICAL SPECIFICATIONS
Specifications

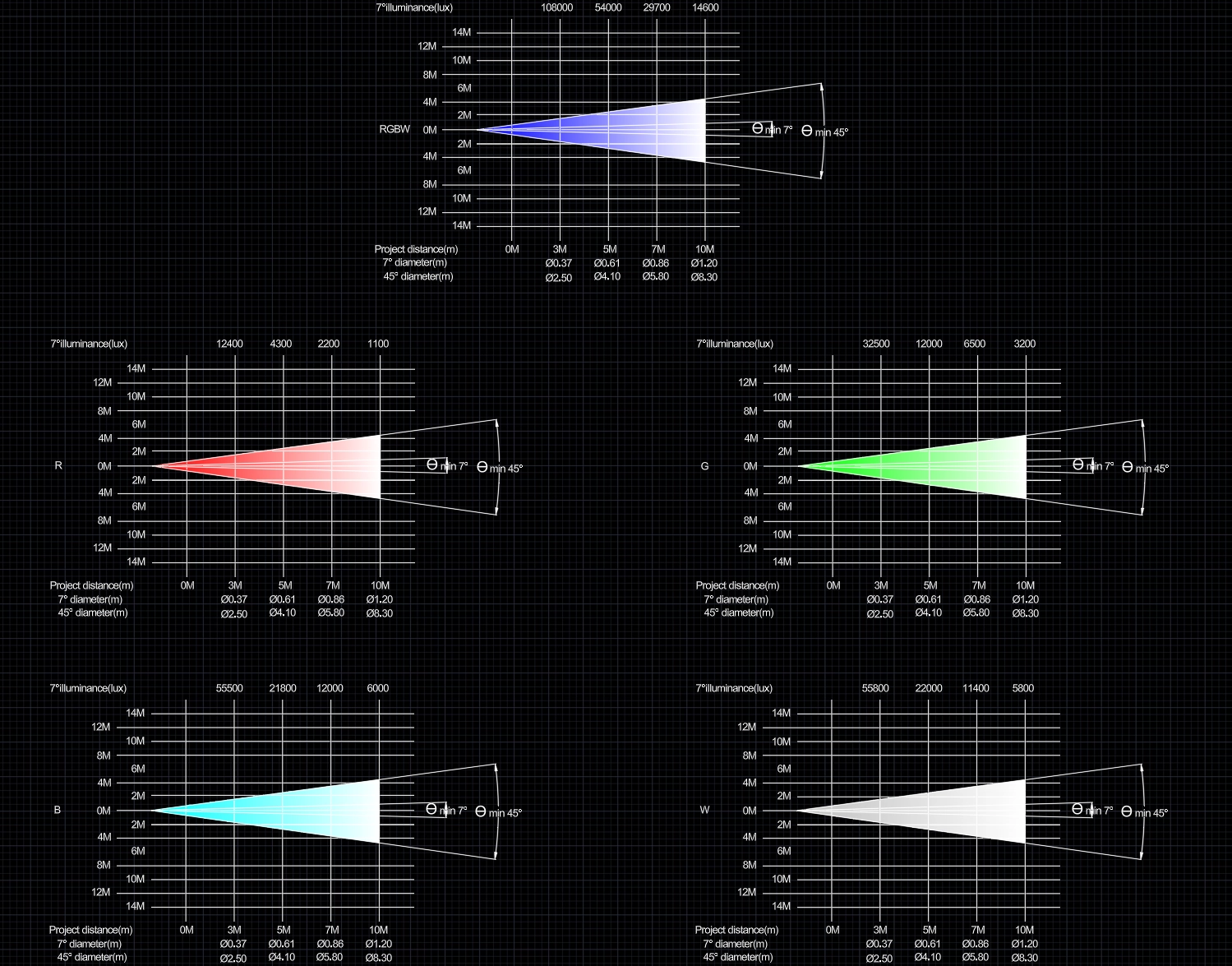

Zoom range
7–45°
Strobe
1–25 Hz, random and pulse flash
Tilt movement
270° (16-bit)
Primary light source
7 × 60W RGBW 4-in-1 LED
Backlight engine
12 × 3W RGB 3-in-1 LED filament (Aura Filament)
Light source lifetime
50,000 h
Color temperature
2500–10000 K
Control protocols
DMX512, RDM (optional Art-Net, Sweden Wireless DMX)
DMX channels
21/30/36/57/78/93 channels
Input voltage
AC 100–240V, 50/60 Hz
Power consumption
550 W
Power connectors
Seetronic powerCON TRUE1 IP65
Fixture dimensions
386 × 291 × 533 mm
Net weight
19.5 kg
Fixture type
IP65 All-weather LED Wash / Beam / Graphic Effect Moving Head
Optical system
PMMA lenses with glass light pipe, endless rotating front lens
Pixel mapping
Individual control of each LED
Dynamic effects
Vortex and Kaleidoscope effects, Aura filament illumination, dynamic patterns
Dimmer
Electronic 0–100%, 4 linear dimming curves
Pan movement
540° (16-bit)
Position accuracy
High-precision magnetic encoder
Display
1.77" interference-free OLED display with flip (password 1111)
IP rating
IP65 all-weather
Housing material
Die-cast aluminum with fire-retardant enclosure
Cooling system
Intelligent cooling with thermal protection and variable-speed fans
