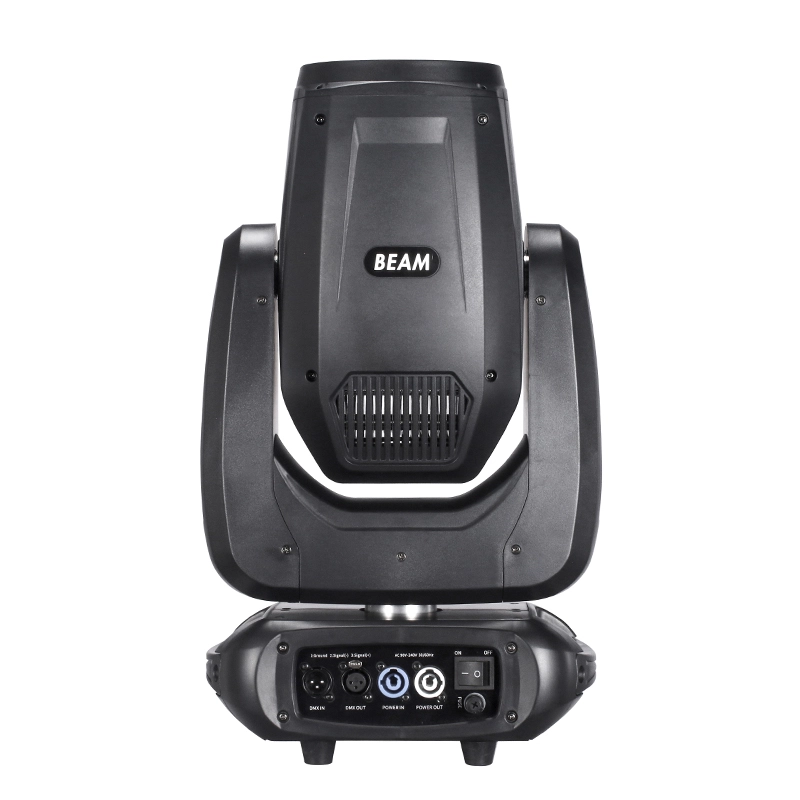

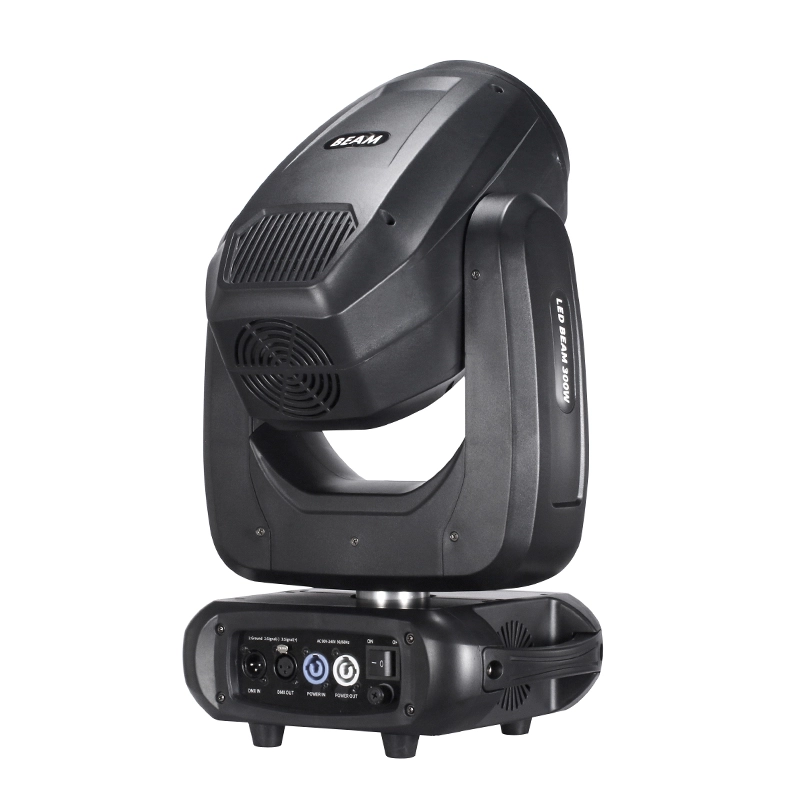

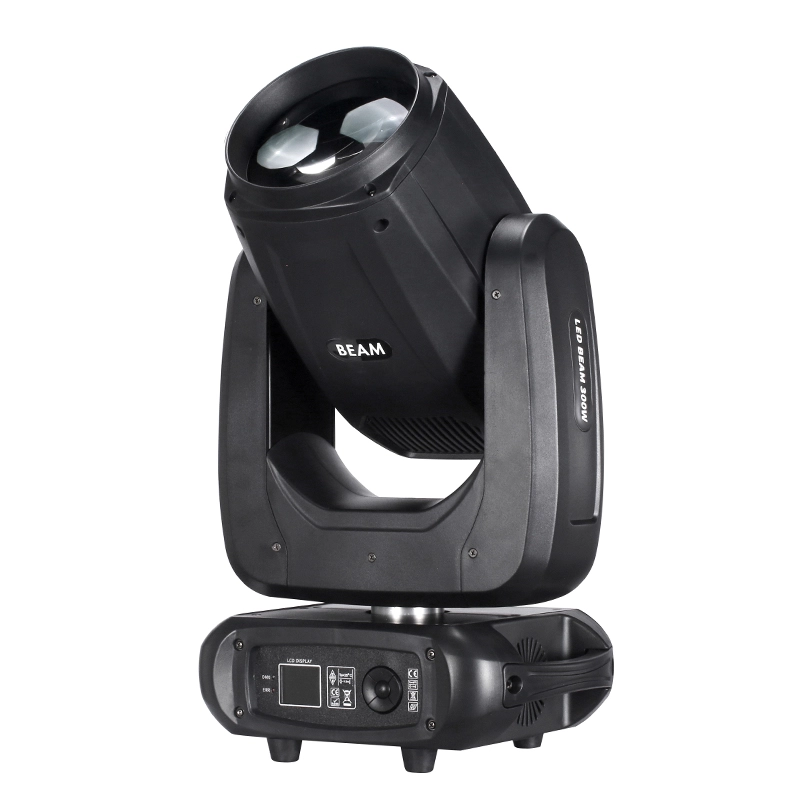

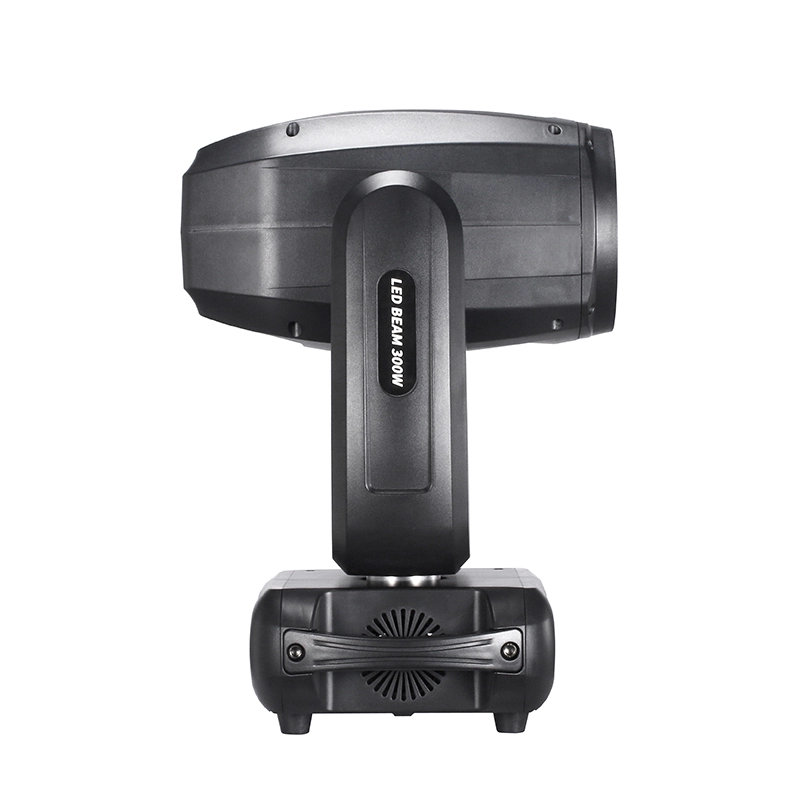

GML ALED BEAM 300

The GML ALED BEAM 300 is a high-speed, powerful Beam moving head fixture engineered to project dense aerial visual effects across concert stages, live touring venues, clubs, and rental productions. Driven by a 230W white LED engine with a 7500K color temperature, it produces a razor-sharp parallel beam with high light output and an operational lifespan of up to 20,000 hours.

Optical System and Narrow Beam Dynamics

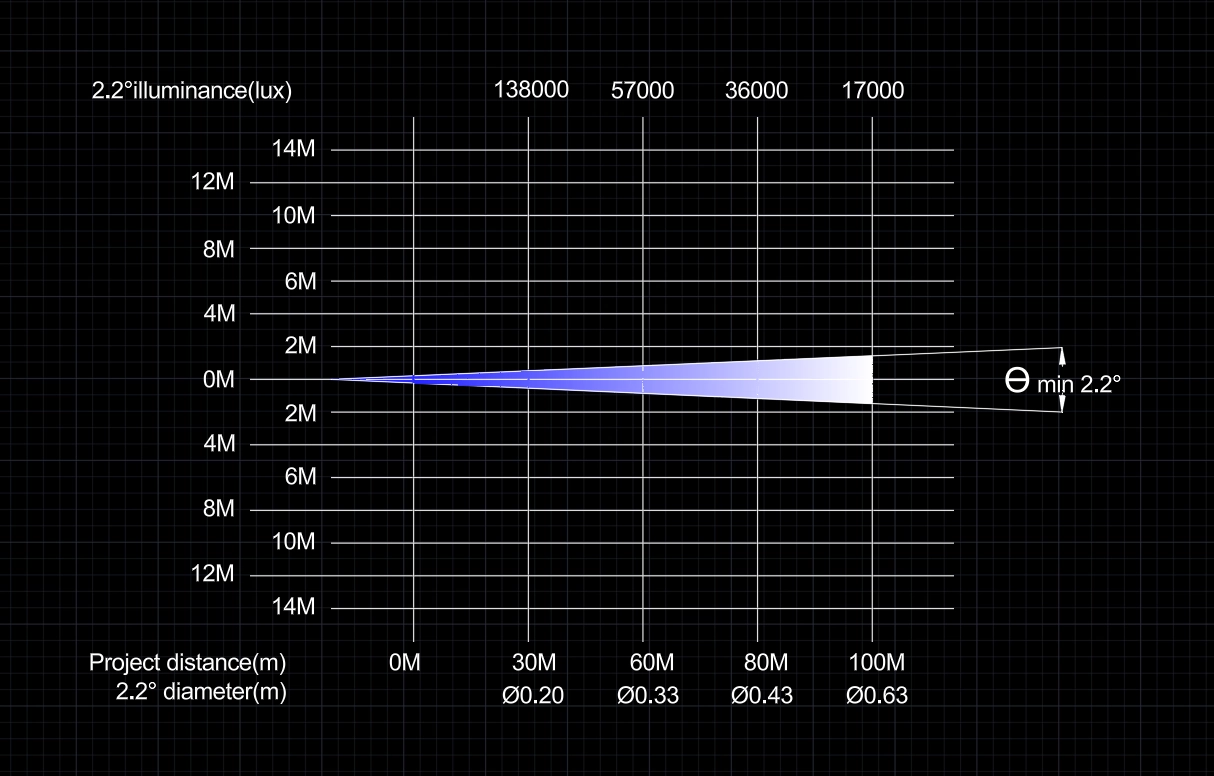

The specialized optical assembly delivers a tight 0°–2° beam angle designed for maximum punch across extended throw distances. Electronic linear focus ensures precise edge sharpness of gobo projections throughout the beam path. An independent linear frost filter (0–100%) seamlessly softens the beam edges to provide smooth wash functionality when required.

Color Palette and Multi-Color Prism Dispersion

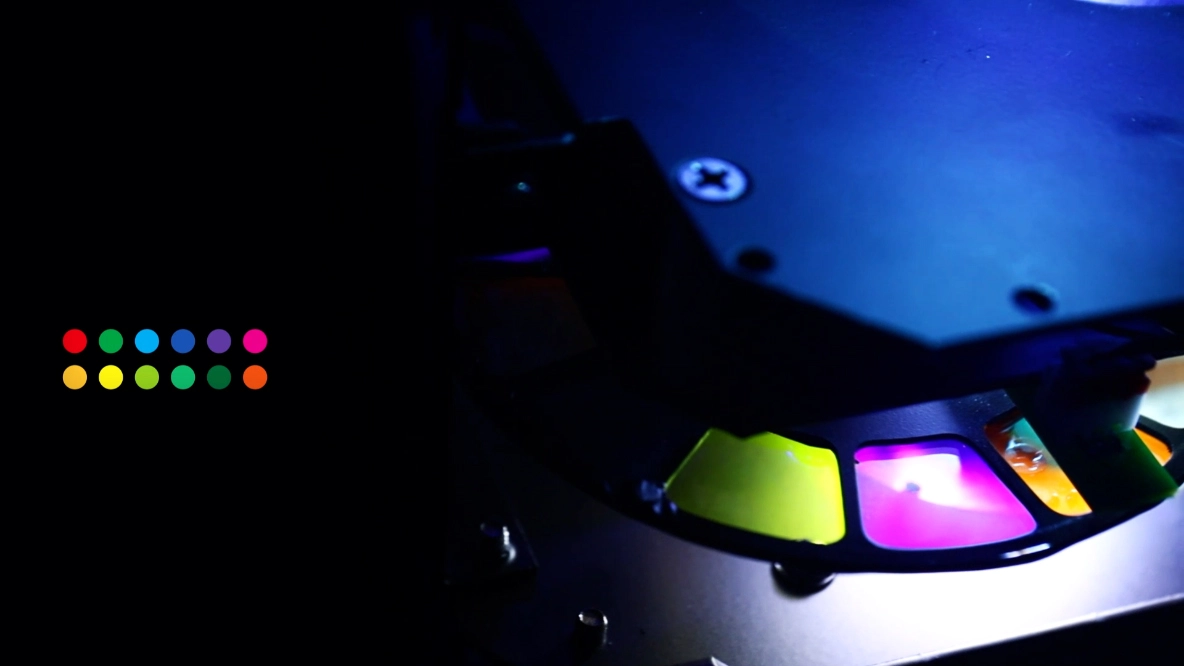

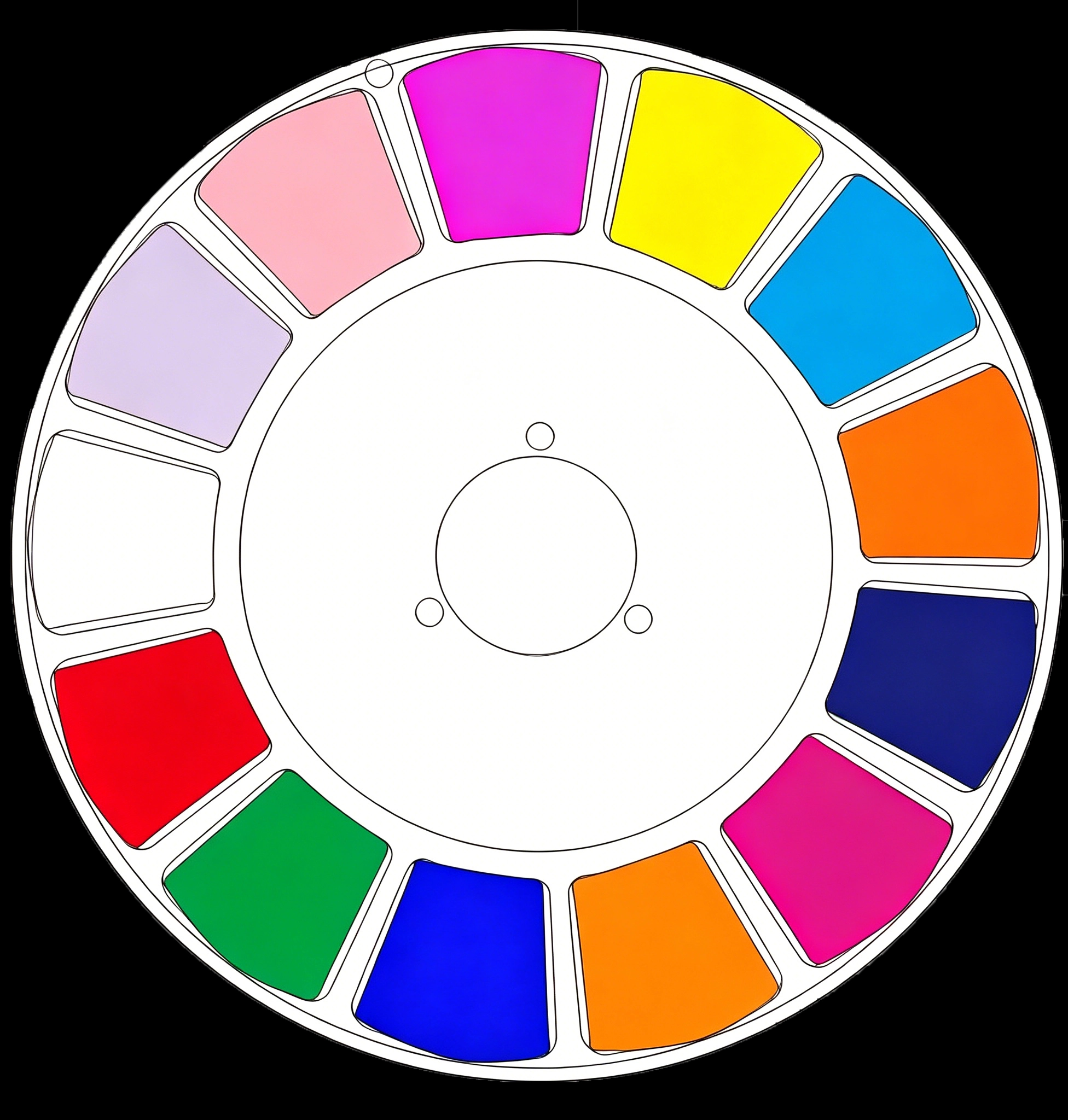

The primary color wheel features 12 dichroic color filters plus open, supporting split-color looks and continuous bi-directional rainbow rotations. An auxiliary multi-color wheel enables multi-tonal rainbow beam effects, splitting the cool white beam into vibrant multi-colored aerial ribbons.

Static Gobos and 24-Facet Prism

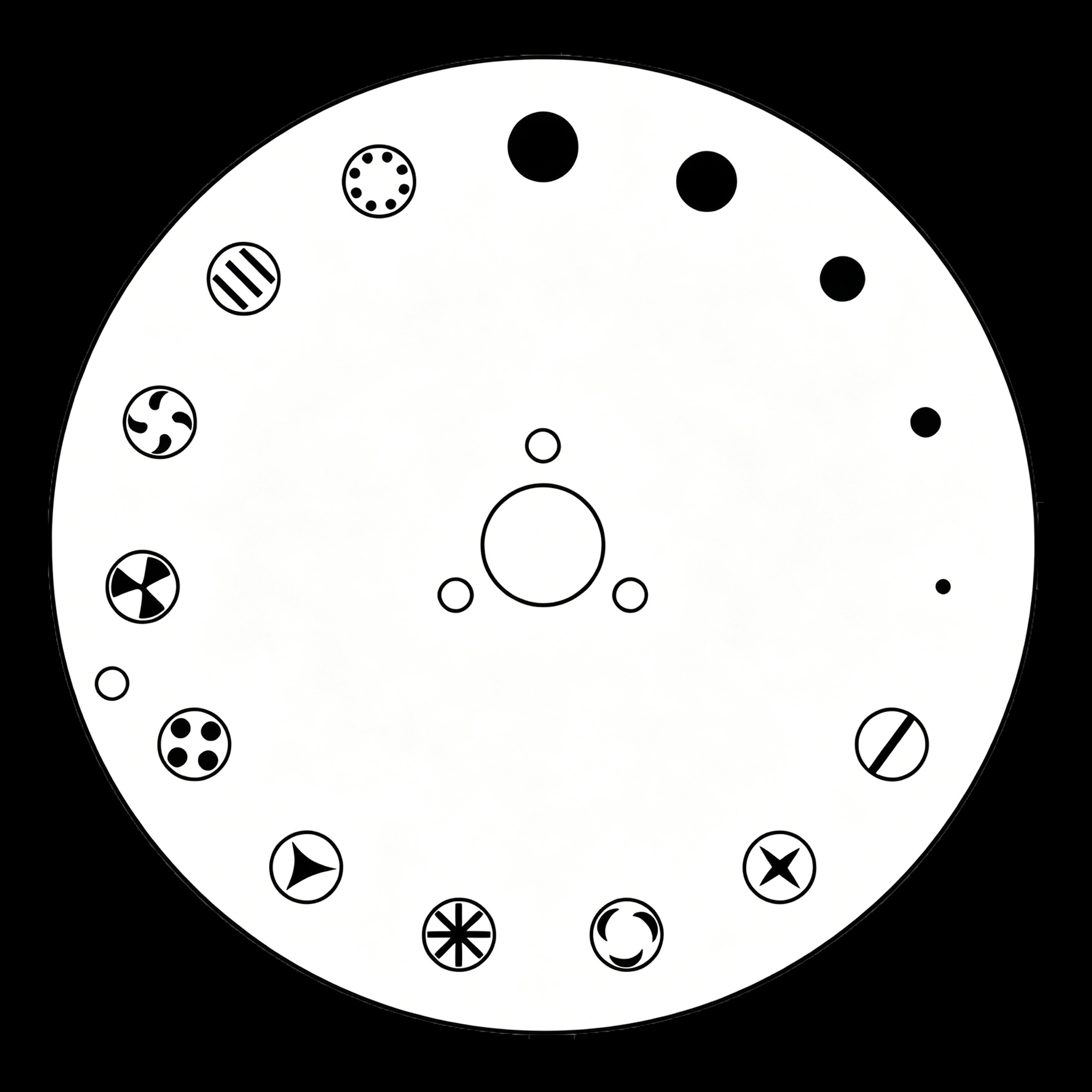

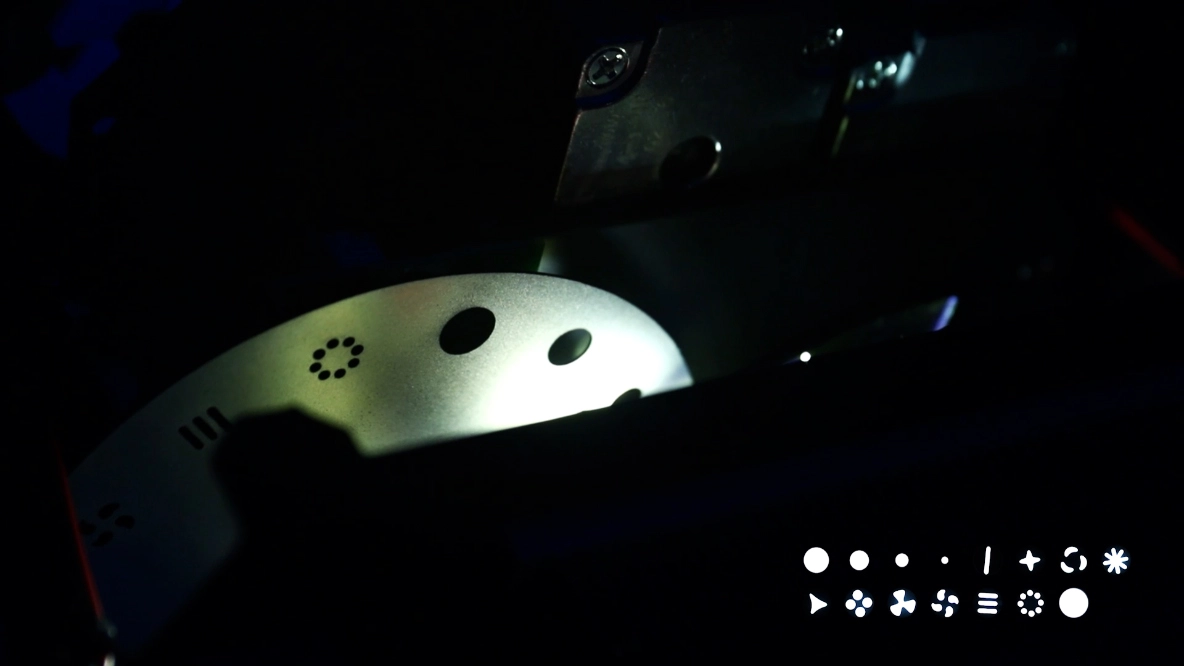

Pattern projection is driven by a 14-fixed metal gobo wheel with open aperture, featuring variable-speed gobo shake and continuous bi-directional scroll. Aerial dimensionality is expanded by a rotating 24-facet circular prism with 0°–400° indexing and smooth reversible rotation, producing layered geometric matrices in haze.

Control, Mechanics, and Thermal Protection

Full fixture control is available via DMX512 (16 channels) alongside bidirectional RDM feedback, built-in standalone macros, Master/Slave, and sound-active modes. Fast, accurate 16-bit Pan (540°) and Tilt (250°/270°) drives feature automatic position correction. Built with rugged fire-retardant ABS housing, the fixture incorporates intelligent thermal protection, including a 35% automatic LED power rollback when the shutter remains closed for over 5 seconds and active fan speed monitoring.
